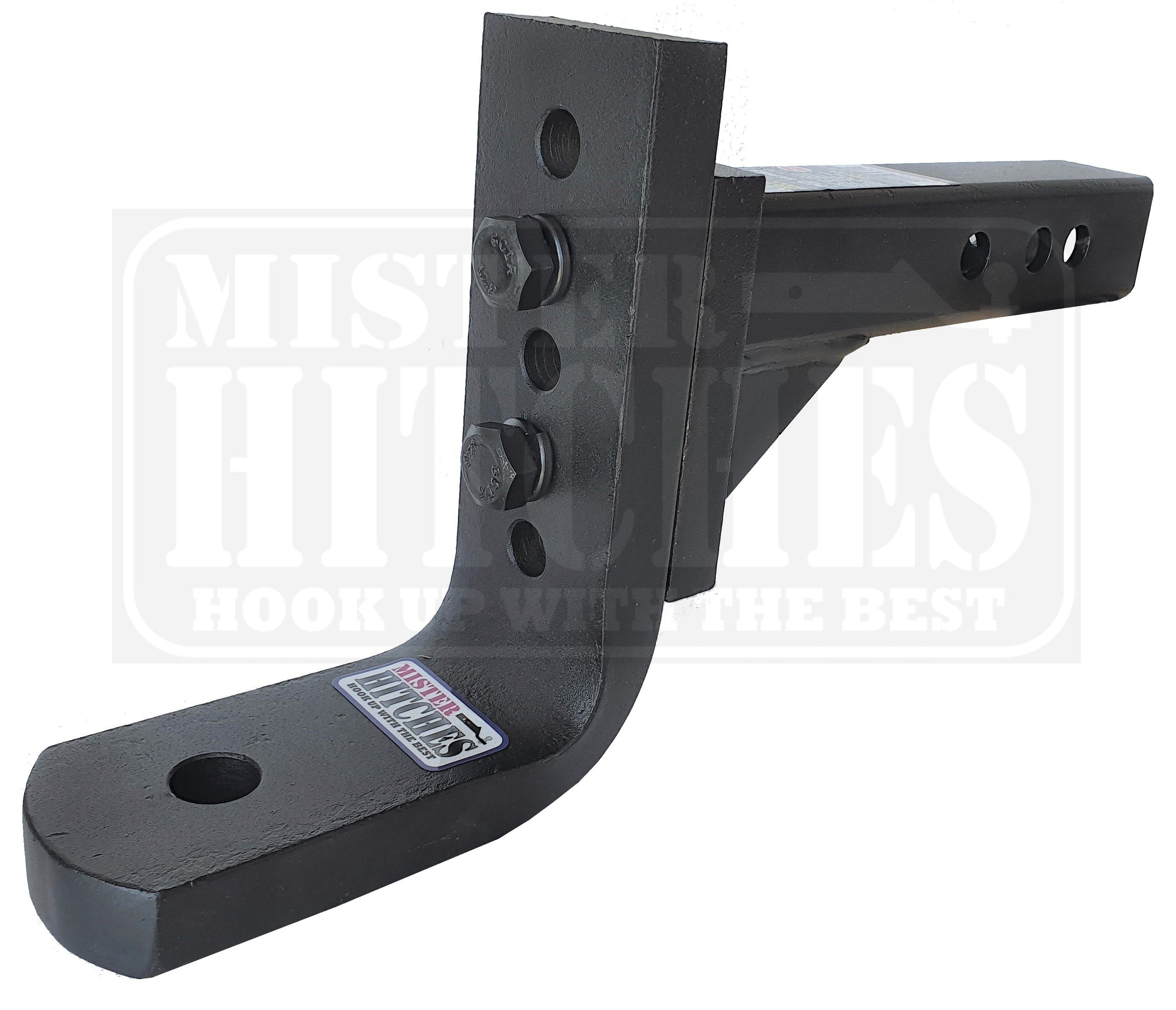

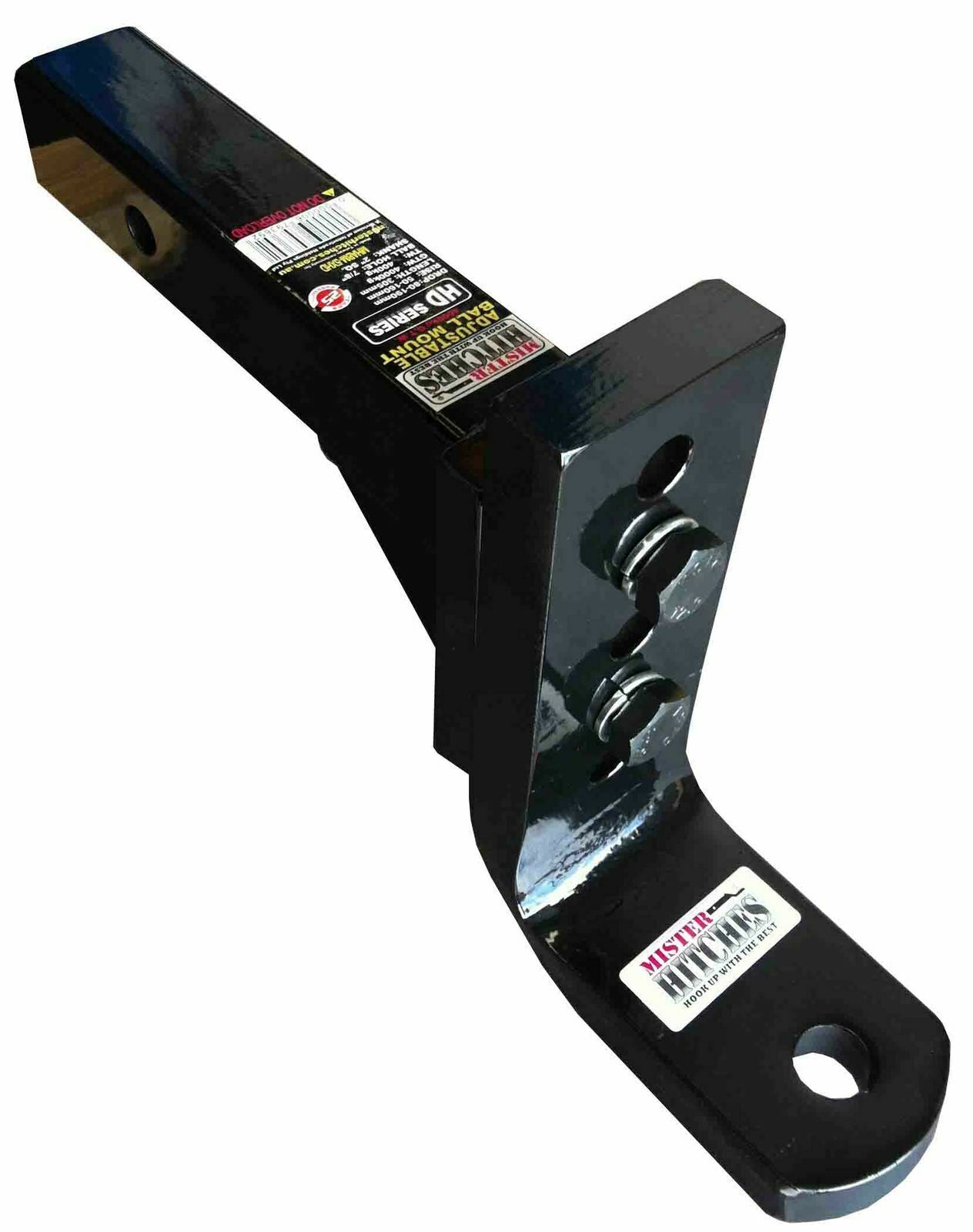

Mister Hitches 4000kg Extra Heavy Duty Adjustable Ball Mount 12 STAGE

• ADJUSTABLE & REVERSIBLE - 12 STAGES
• 6 STAGES OF DROP - 80MM/110MM/130MM/140MM/160MM/190MM
• 6 STAGES OF RISE - 50MM/80MM/105MM/110MM/135MM/165MM

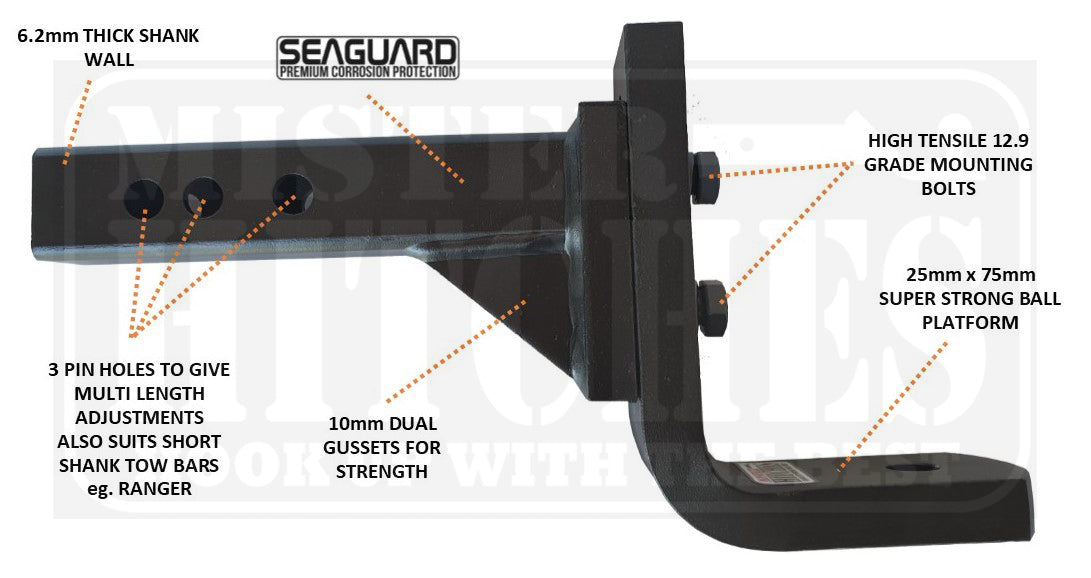

• 10MM DUAL SUPPORT GUSSETS FOR ADDED STRENGTH
• NEW MODEL WITH 3 PIN HOLES (RANGER SHORT SHANK COMPATIBLE)
• USES 12.9 GRADE HIGH TENSILE 16MM BOLTS
• 25MM X 75MM HEAVY DUTY BALL PLATFORM.
• MATT BLACK SEAGUARD FINISH
• ROBOTIC WELDED FOR CONSISTENT QUALITY
• CNC MACHINED FOR MAXIMUM ACCURACY
• FITS 2" X 2" TOWBAR RECEIVERS

GROSS TRAILER WEIGHT: 4000KG

TONGUE WEIGHT: 400KG

BALL HOLE SIZE: 7/8"

MAX DROP: 190MM

MAX RISE: 165MM

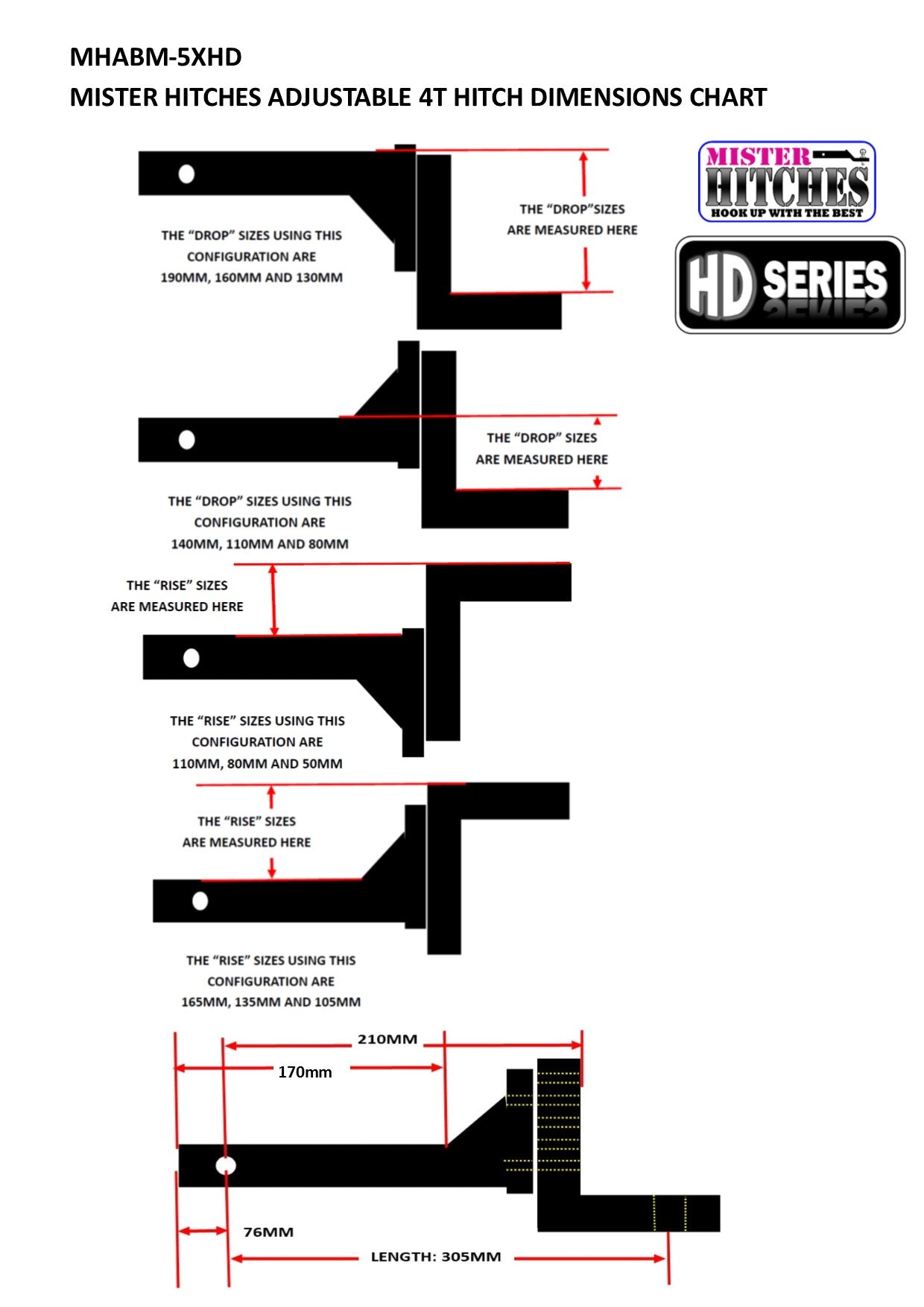

LENGTHS: (MEASURED FROM CENTRE OF PIN HOLE TO CENTRE OF BALL HOLE)

 266MM LENGTH

PIN HOLE TO END OF SHANK 115MM

305MM LENGTH

PIN HOLE TO END OF SHANK 76MM

331MM LENGTH

PIN HOLE TO END OF SHANK 50MM (SUITS FORD RANGER)
