Description

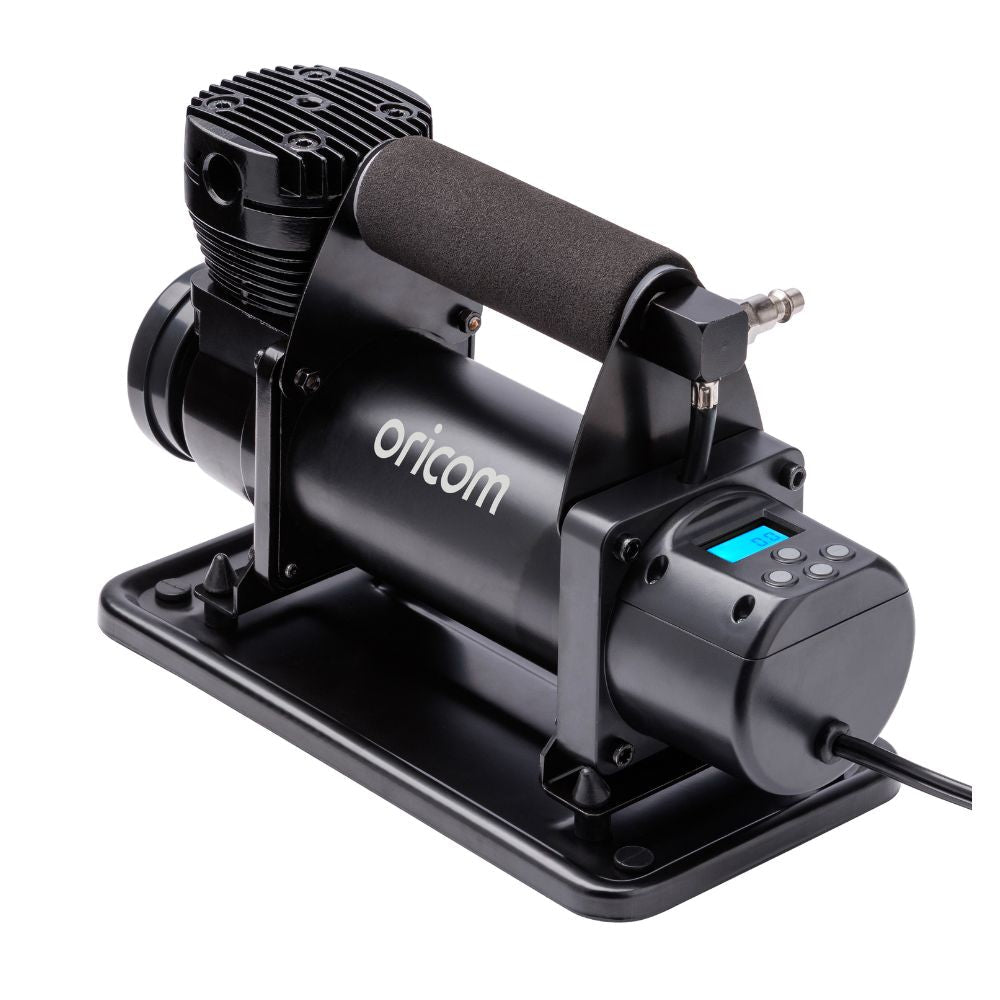

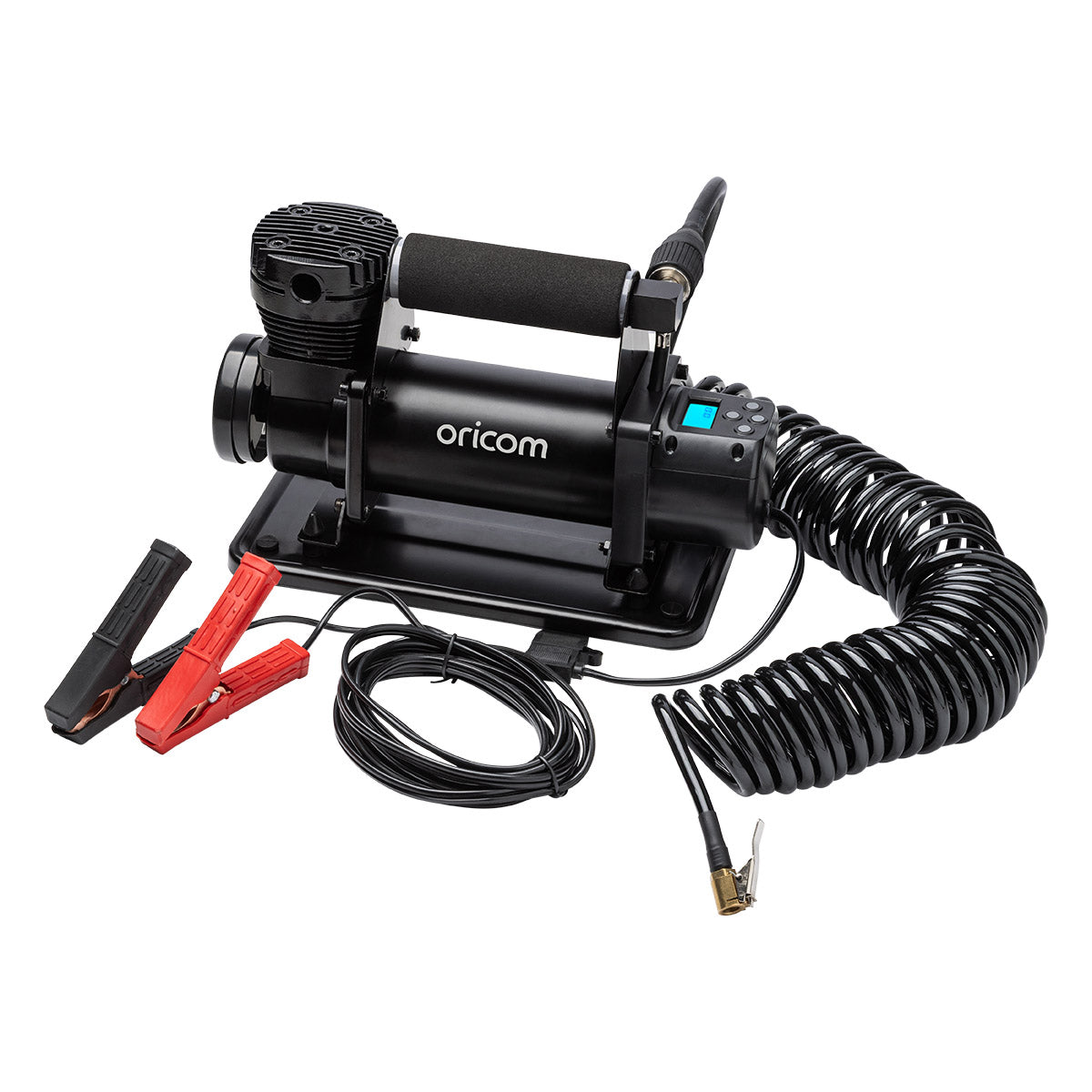

The Oricom AIR20 is a high-performance portable air compressor, delivering quick inflation with a 200PSI max pressure and 70L/min max air flow rate, perfect for 4WDs and off-road vehicles. Durable air filter, automatic shut-off, and thermal protection, ensures safe, reliable inflation.
Key Features:
- Max Pressure of 200 PSI – Ample pressure for inflating a variety of vehicle tyres, from standard to high-performance off-road tyres.
- Air Flow Rate of 70L/min (0 PSI) – Fast inflation from completely deflated tyres, reducing waiting time and enhancing efficiency.
- Thermally Protected Motor (Shuts off at 115°C) – Prevents overheating by automatically turning off the compressor when it reaches high temperatures.
- Max Working Pressure of 150 PSI – Delivers reliable inflation for heavy-duty tyres under demanding conditions.
- Automatic Shut-Off Pressure Switch (120-150 PSI) – Prevents over-inflation by automatically stopping once the desired pressure is reached.
- 3m Power Cable with Battery Clamps – Ensures a secure, direct connection to your vehicle’s battery for reliable power.

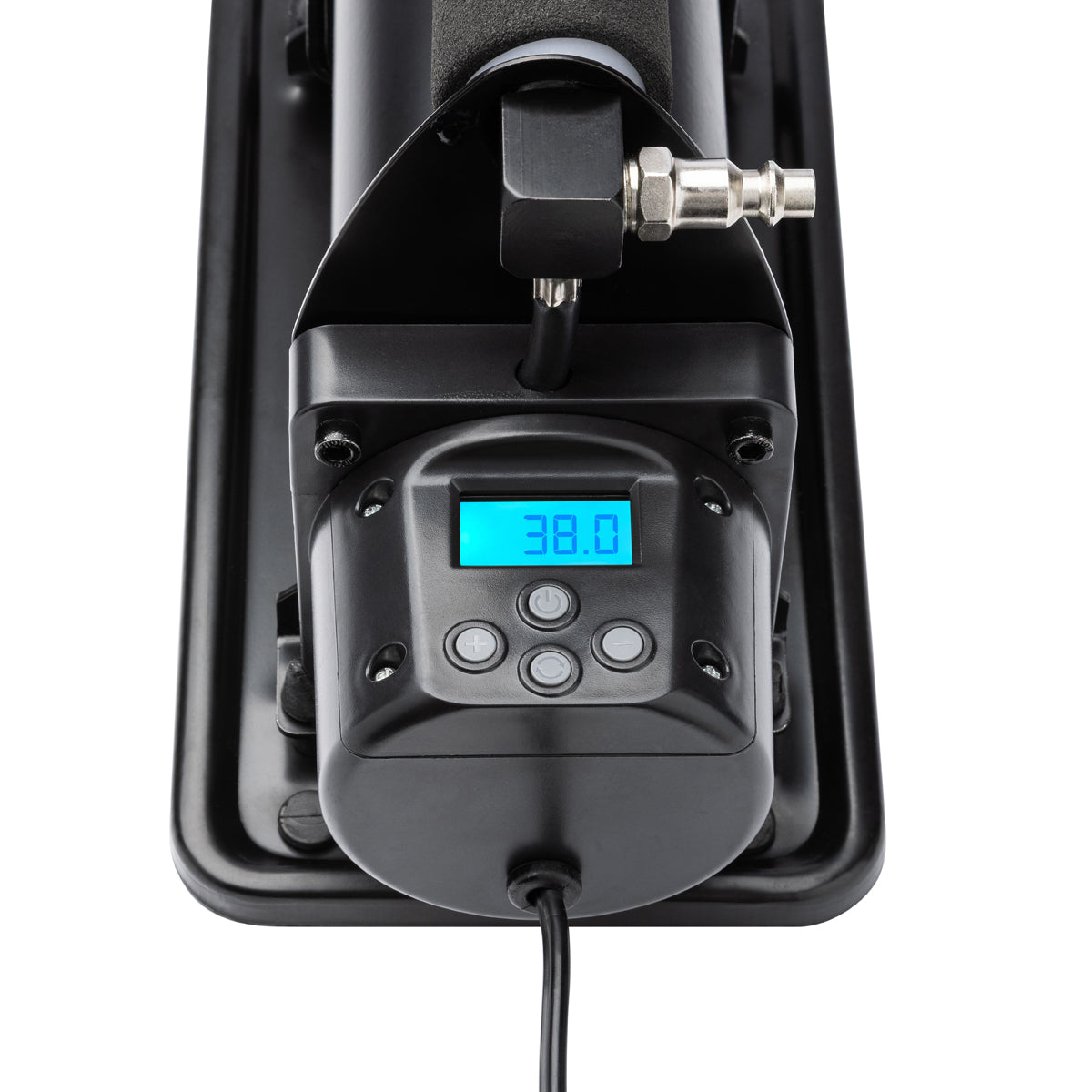

- Integral Digital Pressure Gauge – Allows for accurate tyre pressure monitoring.

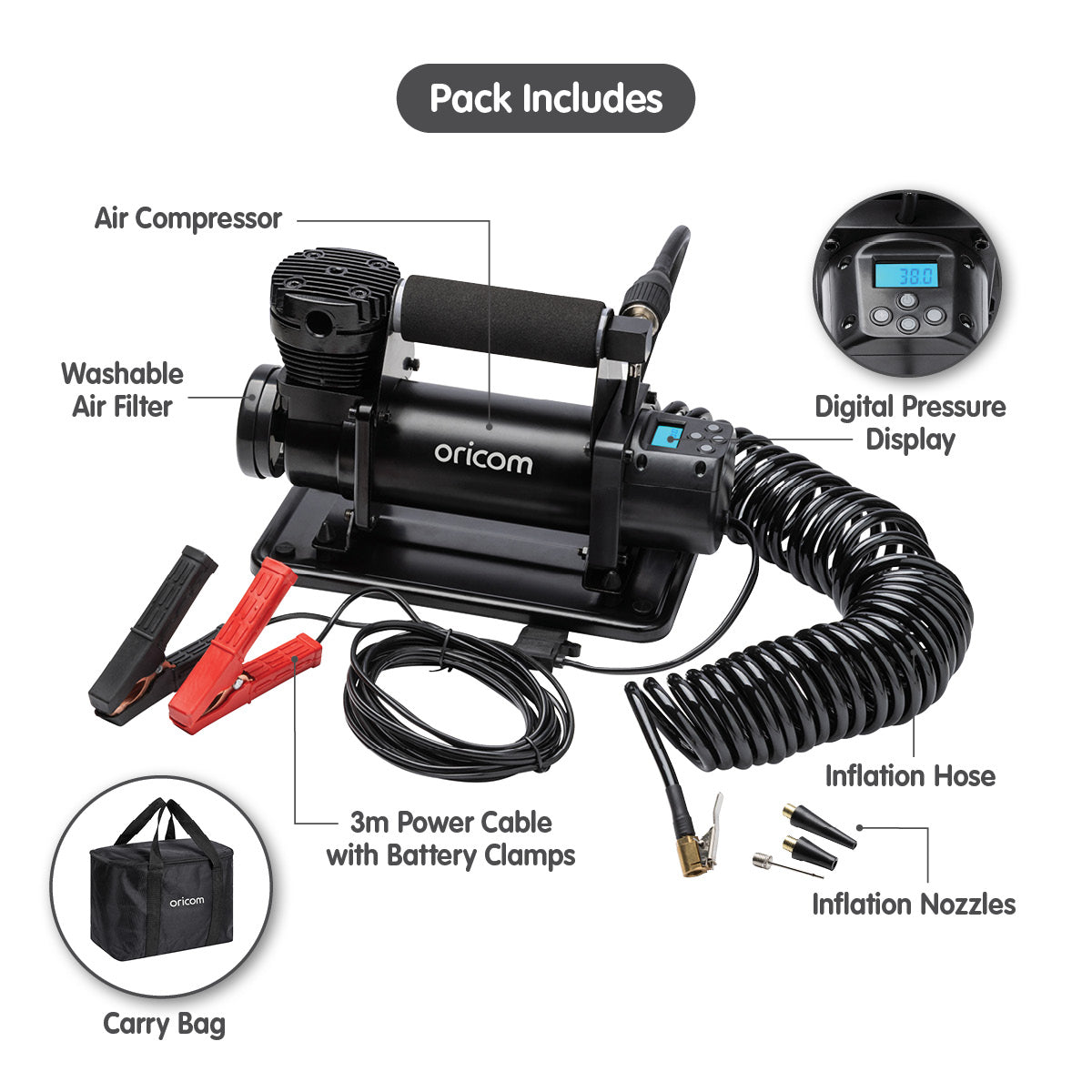

Pack Includes:
- 1 x Digital Air Compressor
- 1 x Washable Air Filter
- 1 x Integral Digital Pressure Gauge with auto shut off

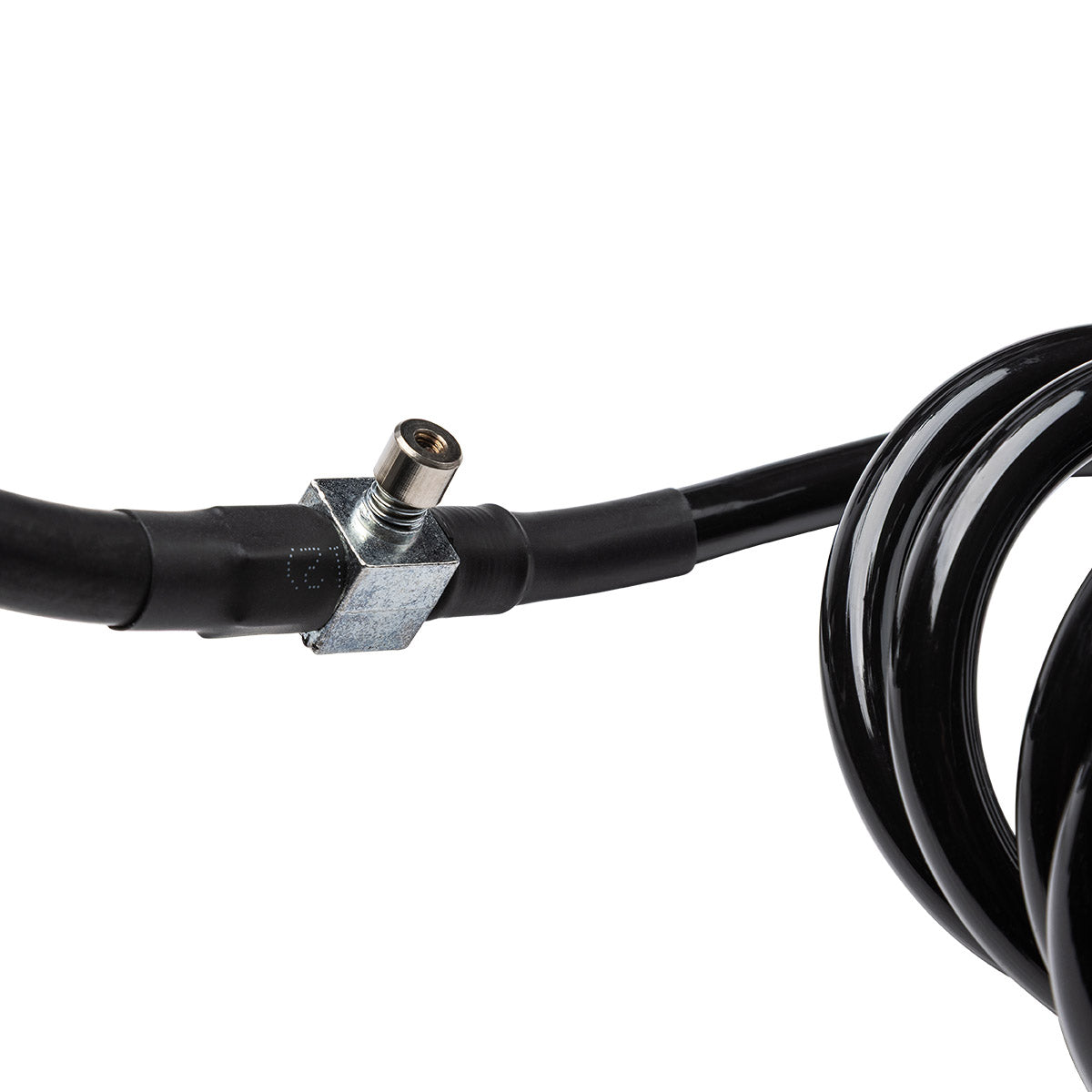

- 1 x 7.5m Inflation Hose with ¼" NPT quick connect fitting
- 1 x 3m Power cable with battery clamps

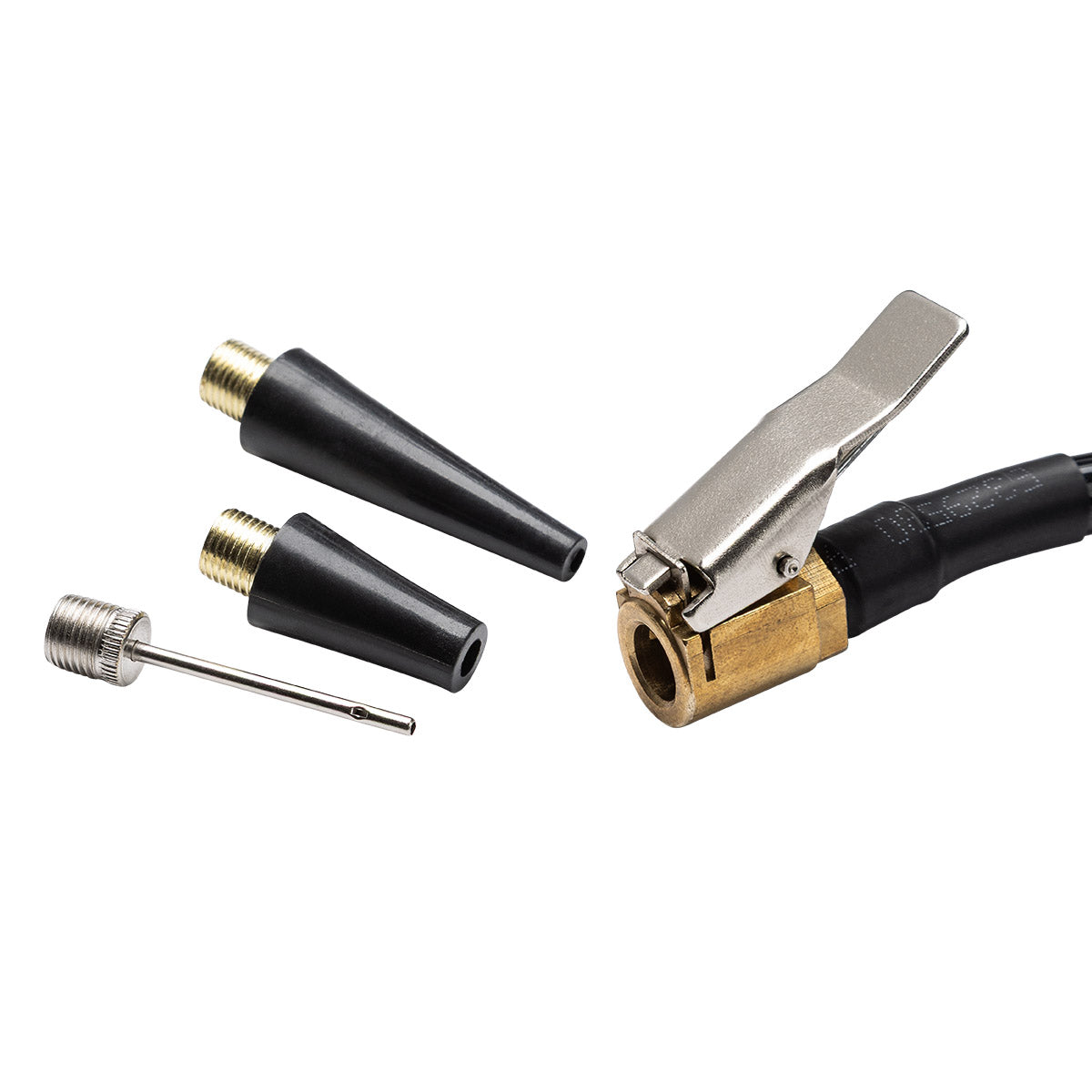

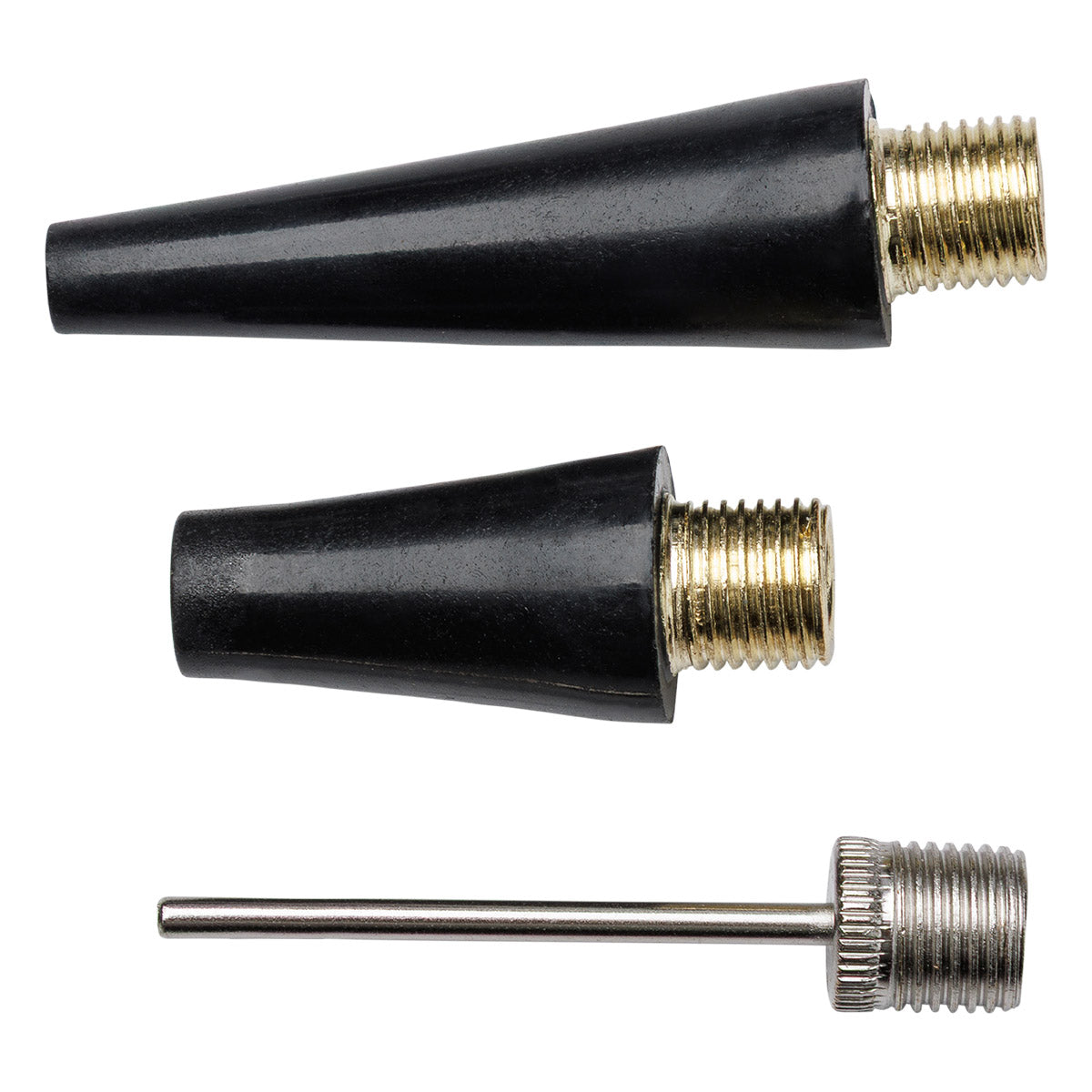

- 3 x Inflation Nozzles
- 1 x Carry Bag
Specifications:
- Cylinder Diameter (Bore) 40mm
- Voltage 12-13.8VDC
- Current Draw Under Load 32A
- Current Draw No Load 18A
- In line Fuse Supplied 40A
- Washable Air Filter Yes
- Max Pressure 200PSI
- Max Working Pressure 150PSI
- Duty Cycle Working 30mins - Rest 30mins
- Air Flow Under Load 48L/min(40PSI)
- Air Flow Rates 70 L/min (0PSI) 50 L/min (29PSI)
- Automatic Shut-off Upon reaching pressure set on display
- Thermal Protection Automatically shuts off at 115°C to prevent overheating
- Connection to Battery 3m Cable with Battery Clamps
- Hose Length 7.5m
- Hose Connector Type NPT ¼" Quick Connect
- Product Dimensions (cm) 30 x 13.5 x 19
- Weight 5.8kg
- Warranty 3 Years
Tested to meet safety standards: AS/NZS 60335.1:2020-tAl:2021 ond EMC compliant with EN/IEC 55014-1:2021
