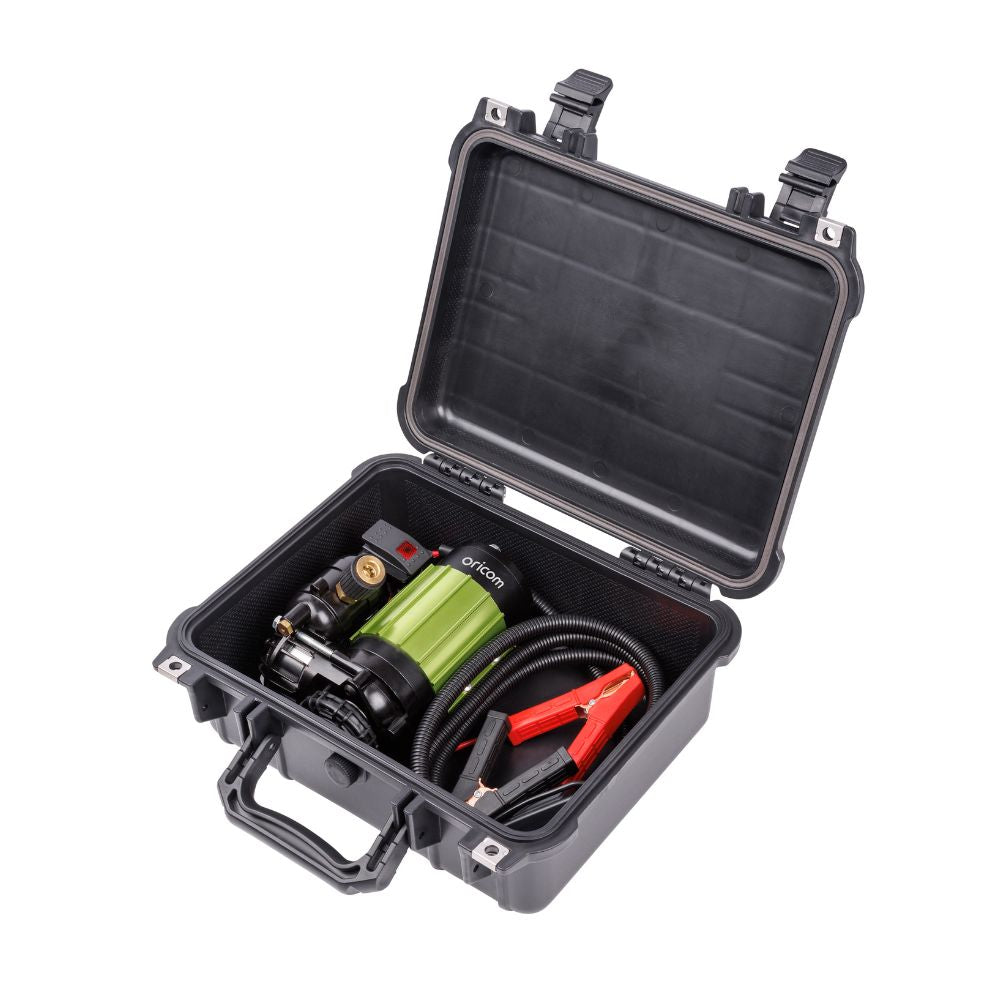

The Oricom AIR30 is a high-performance portable air compressor, delivering quick inflation with a 150PSI max pressure and 75L/min air flow rate, perfect for 4WDs and off-road vehicles.
Featuring a durable air filter, automatic shut-off, and thermal protection, for safe, reliable inflation.
Key Features:
- Max Pressure of 150 PSI – High pressure for inflating a variety of tyres with ease.
- Air Flow Rate of 75L/min (0 PSI) – Fast air delivery for quick tyre inflation.
- Pressure Cutoff Switch (90 PSI ON / 120 PSI OFF) – Automatically turns off once the set pressure is reached.
- Thermal Protection (Shuts Off at 115°C) – Prevents overheating by automatically turning off the compressor.
- 6m Hose Length with NPT 1/4" Quick Connect – Provides ample reach for inflating multiple tyres or different vehicles.
- 2.5m Power Cable with Battery Clamps – Connects directly to your vehicle’s battery for reliable power.
- Heavy Duty Carry Case – Convenient storage and portability for the
compressor and accessories.
- Compatible with Oricom's tyre inflator and deflator.
Pack Includes:
- 1 x Air Compressor with heavy duty case

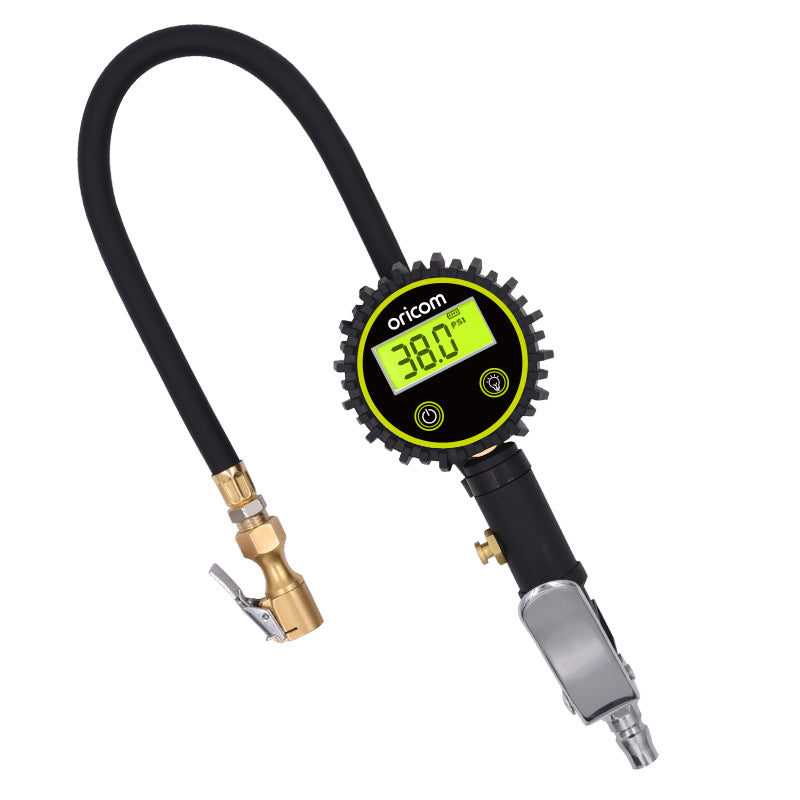

- 1 x Digital Pressure Gauge with auto shut off
- 1 x 6m Inflation Hose with ¼" NPT quick connect fitting
- 1 x 2.5m Power Cable with battery clamps
Specifications:
- Number of Cylinders: 1
- Cylinder Diameter (Bore): 44mm
- Voltage: 12-13.8VDC
- Current Draw Under Load: 32A
- Current Draw No Load: 17A
- In line Fuse Supplied: 40A
- Air Filter: Yes
- Max Pressure: 150PSI
- Max Working Pressure: 120PSI
- Duty Cycle Working 20mins - Rest 40mins
- Air Flow Under Load: 42L/min(40PSI)
- Air Flow Rates: 75 L/min (0PSI) 50 l/min (29PSI)
- Pressure Cutout Switch: 90PSI ON /120PSI OFF
- Thermal Protection: Automatically shuts off at 115°C to prevent overheating
- Connection to Battery: 2.5m Cable with Battery Clamps
- Hose Length: 6m
- Hose Connector Type: NPT ¼" Quick Connect
- Carry Case: Included
- Product Dimensions (cm): 35 x 29.5 x 16
- Weight: 7.3kg
- Warranty: 3 Years
Tested to meet safety standards: AS/NZS 60335.1:2020-tAl:2021 ond EMC compliant with EN/IEC 55014-1:2021
