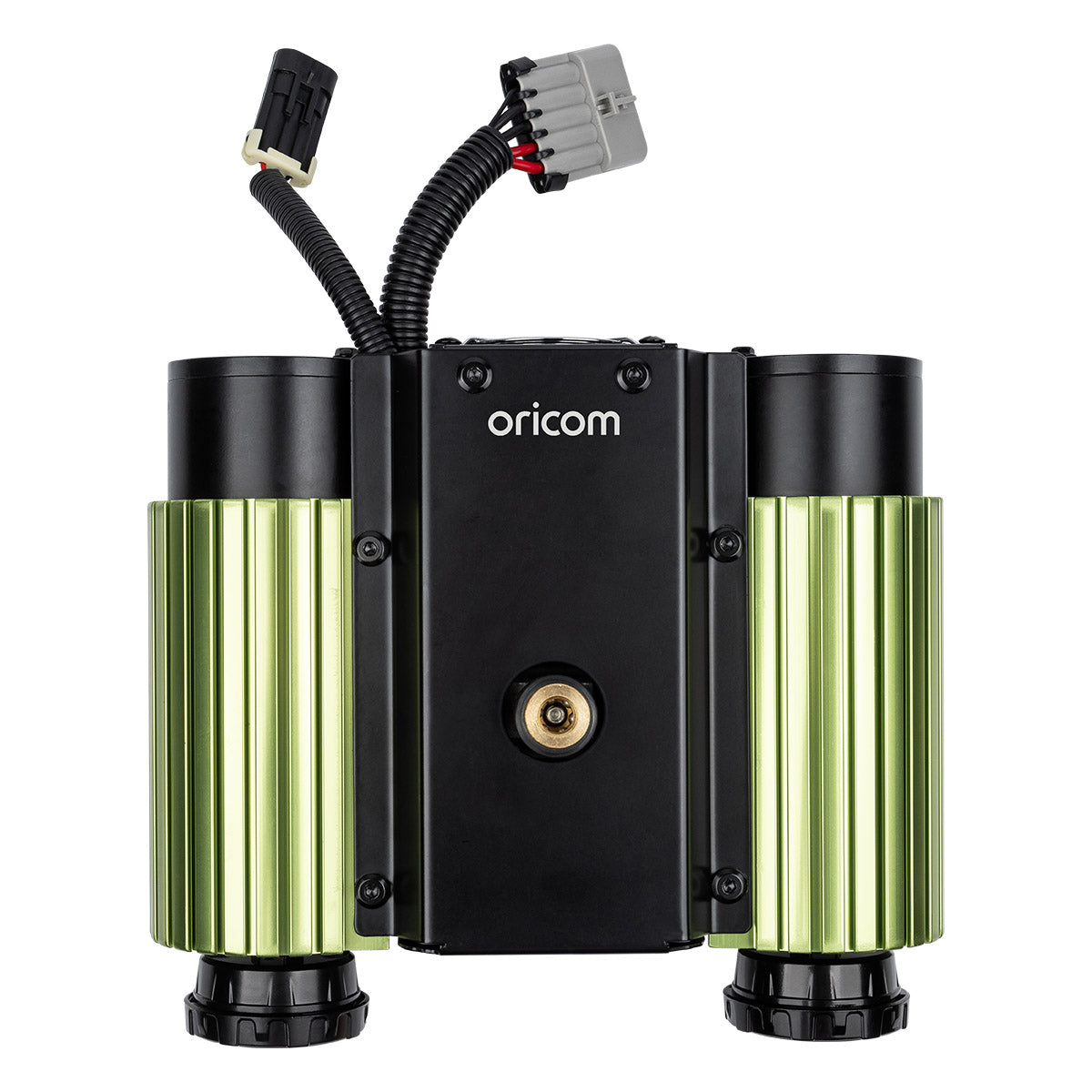

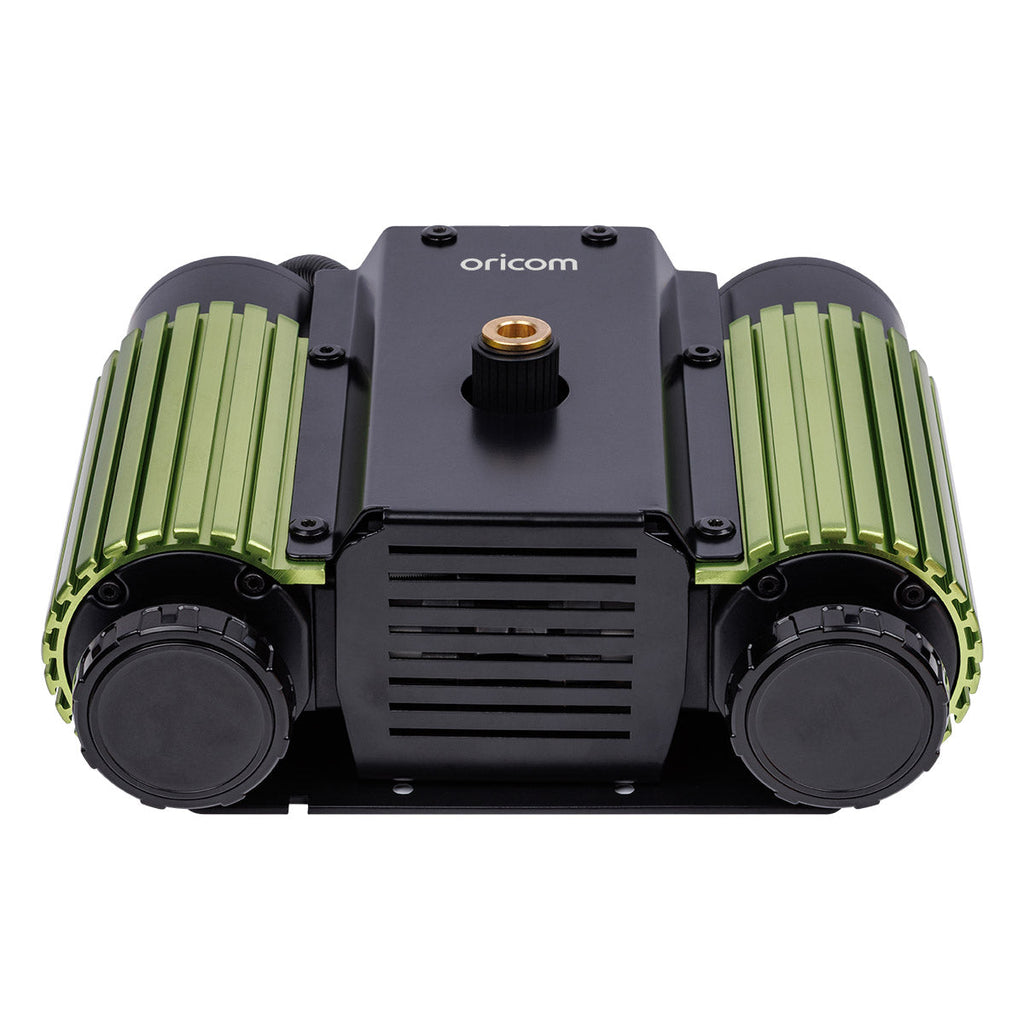

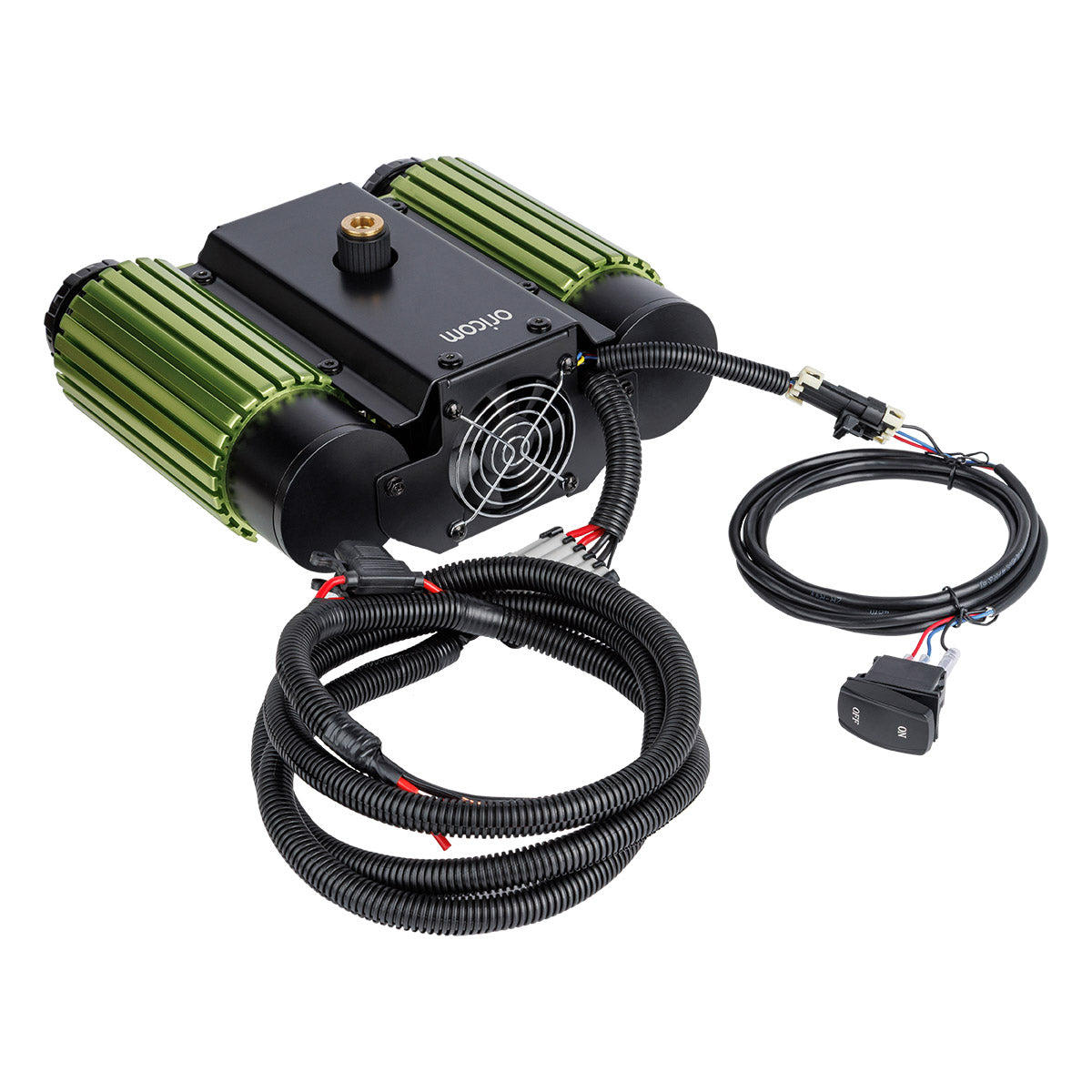

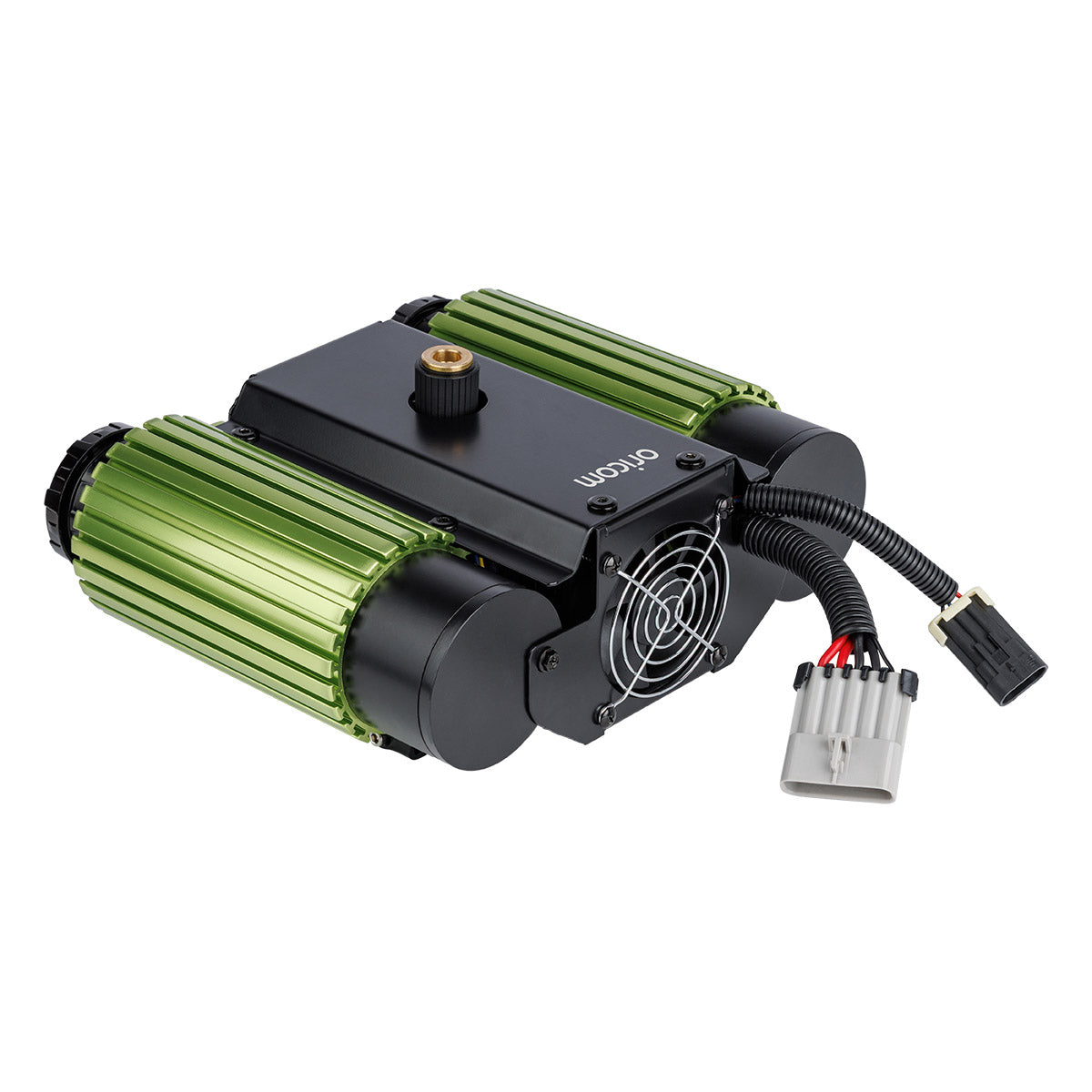

The Oricom AIR40 is a high-performance twin cylinder air compressor, delivering quick inflation with a 300PSI max pressure and 130L/min max air flow rate, perfect for 4WDs and off-road vehicles.
Featuring a durable air filter, automatic shut-off, and thermal protection, for safe, reliable inflation.
Key Features:
- Max Pressure of 300 PSI - High pressure capability for larger tyres and tough inflating jobs.
- High Flow Rates at Various Pressures - Offers a consistent, high flow rate even at different pressure settings, enhancing performance and speed.
- Air Flow Rate of 130L/mln (0 PSQ - Rapid inflation even at lower pressures, reducing downtime.
- Thermally Protected Motor- Prevents overheating during extended use, ensuring long-tern, durability.
- Washable Air Filter-Reduces maintenance by allowing easy cleaning and reusability.
- Automatic Shut-Off Pressure Switch (120-150 PSQ -Safeguards your tyres and compressor by preventing overinflation.
- Quick Connect NPT ¼• Connector-Efficient power usage that reduces strain on the vehicle's electrical system.
- Pressure Cut-Out Switch (120PSI On/160PSI Off) - Enhances safety and ensures the compressor does not overwork, prolonging its lifespan.
- Max Working Pressure of 150 PSI - Ensures reliable performance for large vehicle tyres even in demanding situations.
- Compatible with Oricom's tyre inflator and deflator.
Specifications:
- Number of Cylinders: 2
- Cylinder Diameter (Bore): 40mm
- Voltage: 12-13.8VDC
- Current Draw Under Load: 62A
- Current Draw No Load: 35A
- In line Fuse Supplied: 40A
- Washable Air Filter: Yes
- Max Pressure: 300PSI
- Max Working Pressure: 150PSI
- Duty Cycle Working 45mins - Rest 20mins
- Air Flow Under Load: 108L/min (40PSI)
- Air Flow Rates: 130 L/min (0PSI) 112 L/min (29PSI)
- Pressure Cutout Switch: Cuts out automatically when 120-150psi pressure reached
- Thermal Protection: Automatically shuts off at 115°C to prevent overheating
- Connection to Battery: Wiring loom
- Hose Length: 6m
- Hose Connector Type: NPT ¼" Quick Connect
- Product Dimensions (cm): 29x24.5x12
- Weight: 10.2kg
- Warranty: 3 Years
Tested to meet safety standards: AS/NZS 60335.1:2020-tAl:2021 and EMC compliant with EN/IEC 55014-1:2021
