Description
When the new TY2 Dual Input Switch is connected to the Lightforce Dual Input Switch Adaptor #SWADP6, you will have a complete plug and play connection, should you wish to install the Lightforce Harness for Genesis and Venom LED #LFDLHTS2.

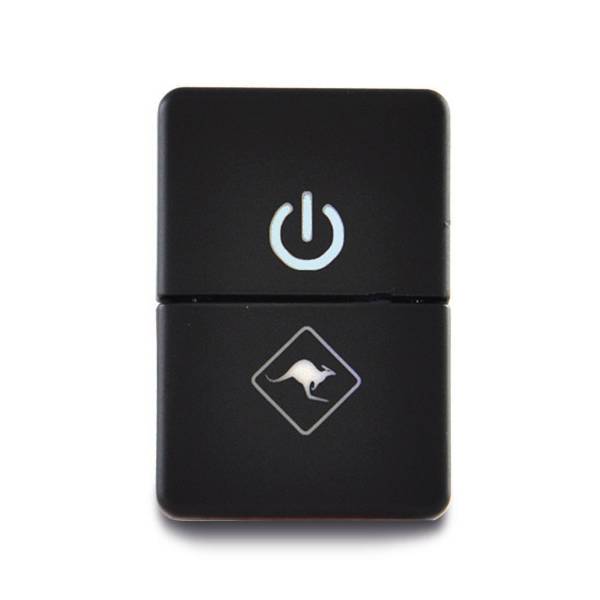

This factory style switch features the Lightforce Roo Logo and icon for universal applications. Available for the following vehicles without any modification to the original dashboard.
Toyota 200 Series 2008+, Toyota Hilux MY15+, Toyota Prado 150 Series 2008+, Lightforce Switch Fascia’s (CBFASCIA, CBFASCIA2 (top row) & CBFASCIA3.
Features include:
- Dual inputs providing two independently switched outputs
- Dual coloured illumination – blue (switch illumination) & green (once switch is on)
- Suitable for positive switched vehicles
- Harness included (300mm in length)
- Switch cut out size: 18mm x 28mm
- Australian design patent
The switch must be used in conjunction with a relay as it has a maximum current rating of 3 amps @12v.
Vehicle Compatibility
| Make | Model | Compatible From | Compatible To |
|---|---|---|---|
| Ford | Ranger PX2 (fitted with LF fascia) | 2015 | 2018 |
| Ford | Ranger PX3 (fitted with LF fascia) | 2019 | 2021 |
| Ford | Everest (fitted with LF fascia) | 2015 | 2021 |
| Holden | Colorado (fitted with LF fascia) | 2017 | 2020 |
| Suzuki | Jimny JB64W/JB74W | 2018 | 2020 |
| Toyota | 200 Series Landcruiser | 2008 | 2020 |
| Toyota | 4Runner | 2008 | 2020 |
| Toyota | 86 (Subaru BRZ / Scion FR-S) | 2012 | 2020 |
| Toyota | Camry | 2011 | 2014 |
| Toyota | Corolla | 2006 | 2013 |
| Toyota | FJ Cruiser (roof console only) | 2011 | 2016 |
| Toyota | Fortuner | 2016 | Current |
| Toyota | Highlander | 2001 | 2007 |
| Toyota | Highlander | 2008 | 2018 |
| Toyota | Hilux | 2015 | Current |
| Toyota | Kluger | 2008 | 2019 |
| Toyota | Prado 150 | 2010 | Current |
| Toyota | RAV4 | 2006 | 2019 |
| Toyota | Tacoma (Center Console Only) | 2012 | 2020 |
| Toyota | Tundra | 2007 | Current |
| Toyota | Landcruiser 79 (Plastic Dash) Series | 2021 | 2023 |
