Dual Usb To Suit Ford Ranger Switch Fascia

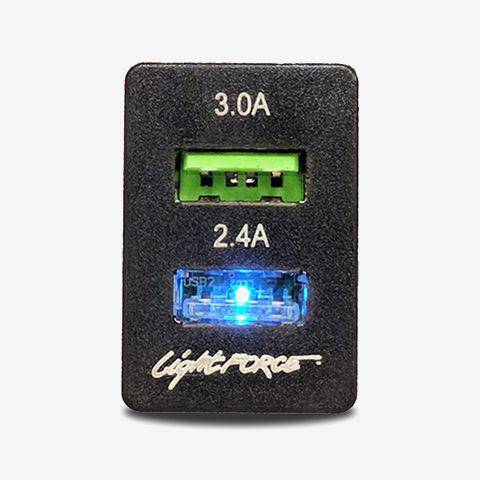

Led Illuminated, Panel Mounted Dual Usb Socket

Features:

• Independent 2.4 Amp And 3.0 Amp Outputs That Are Fully Regulated And Surge Protected.
• Independent Illumination That Is Fully Dimmable Via Existing Dash Light Circuit, Separate From The Main Input Power, So Illumination Is Not Always On; A Unique Feature Of Our Product.
• All Cables Are Over 1.5 Metres Long, Usb Power Input (Red Wire) Is Fitted With A Micro2 Fuse Tap For Direct Fitment To The Fuse Box. Negative Cable (Black Wire) Is Pre-Terminated With A Ring Terminal And Independent Led Illumination (Blue Wire) For Connection To Existing Dash Light Circuit.

Specifications:

• Independent 2.4 Amp And 3.0 Amp Outlets
• 5.1 Volts Regulated Output
• 1.5 Metre Long Cables
• 5 Amp Micro2 Fuse Tap For Dual Usb Outlets (Fitted)
• Independent Blue Led Illumination
• Matt Black Face

Installation:

Please Note - This Usb Charger Only Fits The Lightforce Ford Ranger Fascia (Cbfascia) In The Upper Middle Switch Location.

• Red Wire ‚Usb Positive Wire Can Be Connected In The Following Ways. To An Ignition Source So The Unit Is Only Powered Once The Vehicle Is On; Or To An Always On Source So The Unit Is Active Continuously.
• Blue Wire ‚Positive Wire Connects To The Existing Dash Light Circuit So Led Illumination Is Only Active Once Headlights Are On.
• Black Wire ‚Fit To Vehicles Negative (Earth) Simply, Connect Ring Terminal To An Existing M6 Bolt That Is Grounded.

Note: All Vehicle Accessories Should Be Wired Through A Fuse If The Included Harness Is Modified During Installation Ensure A Fuse Is Used As Close To The Input Source As Possible, Not Exceeding 5 Amps.
