Description

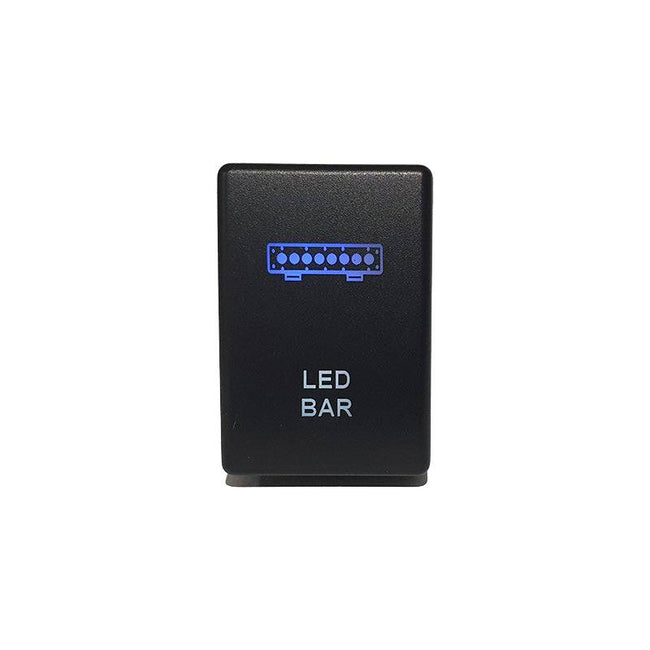

The Text Illuminates White Via The Dash Light Circuit. Once The Switch Is Pushed On, The Upper Icon Window Illuminates Blue.
This Factory-Style Led Bar Switch Is Designed Specifically To Fit 3Rd Generation Vehicles Only And Will Fit Into The Original Dashboard, (Right-Hand Side Of The Steering Wheel) Without Any Modification.
Specifications Include:
- Switch Cut Out Size Is 20mm X 31mm
- Housing Material Black Pvc
- Single Switch Input
- Dual Led Illumination
- Suitable For Positive Switched Vehicles Only
- Harness Included (300mm In Length)
- Current Rating 3 Amps @ 12v (Must Be Used In Conjunction With A Relay)
Harness Compatibility:
Compatible With Lightforce Single Switch 8 Pin Adaptor # Swadp4. This Enables Direct Connection To Lightforce Harness Part Number Strikerledharn (Striker Led Harness).
Switch Connectivity:
Vehicle Compatibility
| Make | Model | Compatible From | Compatible To | Fitment Location |
|---|---|---|---|---|
| Isuzu | D-Max | 2013 | 2020 | Either Side Of The Steering Wheel On Upper Dash |
| Isuzu | D-Max | 2020 | 2024 | |
| Isuzu | Mux | 2021 | 2024 | |
| Mazda | Bt50 | 2020 | 2023 | |
| Holden | Colorado | 2012 | 2016 | Either Side Of The Steering Wheel On Upper Dash |
