Lightforce Dc4 Switch To Suit Isuzu/Mazda 3rd Gen

Ideally Suited For Those Who Wish To Integrate An Additional Switch Into The Factory Switch Locations.

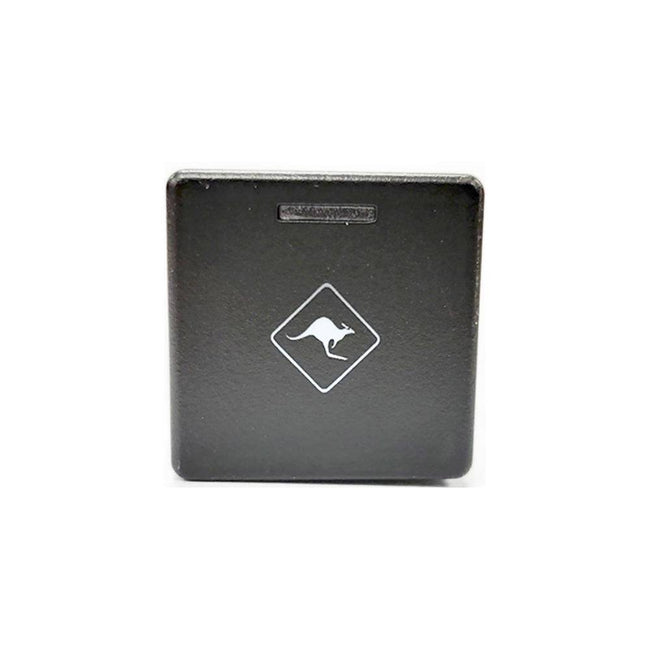

This Single Switch Fits The 22mm X 22mm Factory Switch Locations, Near The Vehicle's Transmission Selector.

Fitment Location: In Front, Either Side Of The Gear Selector.

This Lightforce Single Switch Is Moulded From A Blend Of Abs Plastic And Polycarbonate To Ensure Longevity. Its Compact Design Will Integrate With The Vehicle Seamlessly.

Specifications Include:

• Dual Led Illumination (White/Blue)
• Suitable For Positive Switched Vehicles Only
• Rohs Compliant
• Harness Included (100mm In Length)
• 3 Amps Current Rating @ 12v
• Switch Dimensions: 22mm (H) X 22mm (W)
• Mounting Dimensions: 17.5mm (H) X 19mm (W)
• When Switch Is In The Off Position (Up) The Height Of The Switch Top Is The Same As The Existing Factory Switches
• When The Switch Is In The On Position (Down) The Difference In Height Is Less Than 2.00mm

Electrical Specifications:

• Blue ‚12v Input
• Yellow ‚12v Switched Output
• Not Used
• Red ‚12v Dash Light Illumination
• Black - Negative
• Positive Switching Only
• Independent 12v Circuit For Dash Illumination
• Separate Active Led Is Powered Via The +Ve Switched Output
• Negative Is Common For Dash Illumination Led And Switch Active Led
• Led Illumination Colours ‚Dash Lights On = White, Active Indicator Colour = Blue

Illumination:

The Led Illuminates White Via The Dash Light Circuit, Once The Switch Is Pushed On, The Led Illuminates Blue.

Lightforce Harness Integration:

Use Lightforce Part Number Swadp4 For Integration To Lightforce Driving Light Harness Lfdlhss.

Note: Suits Low-Mid Spec Vehicles Only As Top Spec Vehicles Do Not Have Any Suitable Switch Blanks Available Due To Heated Seats
