Description

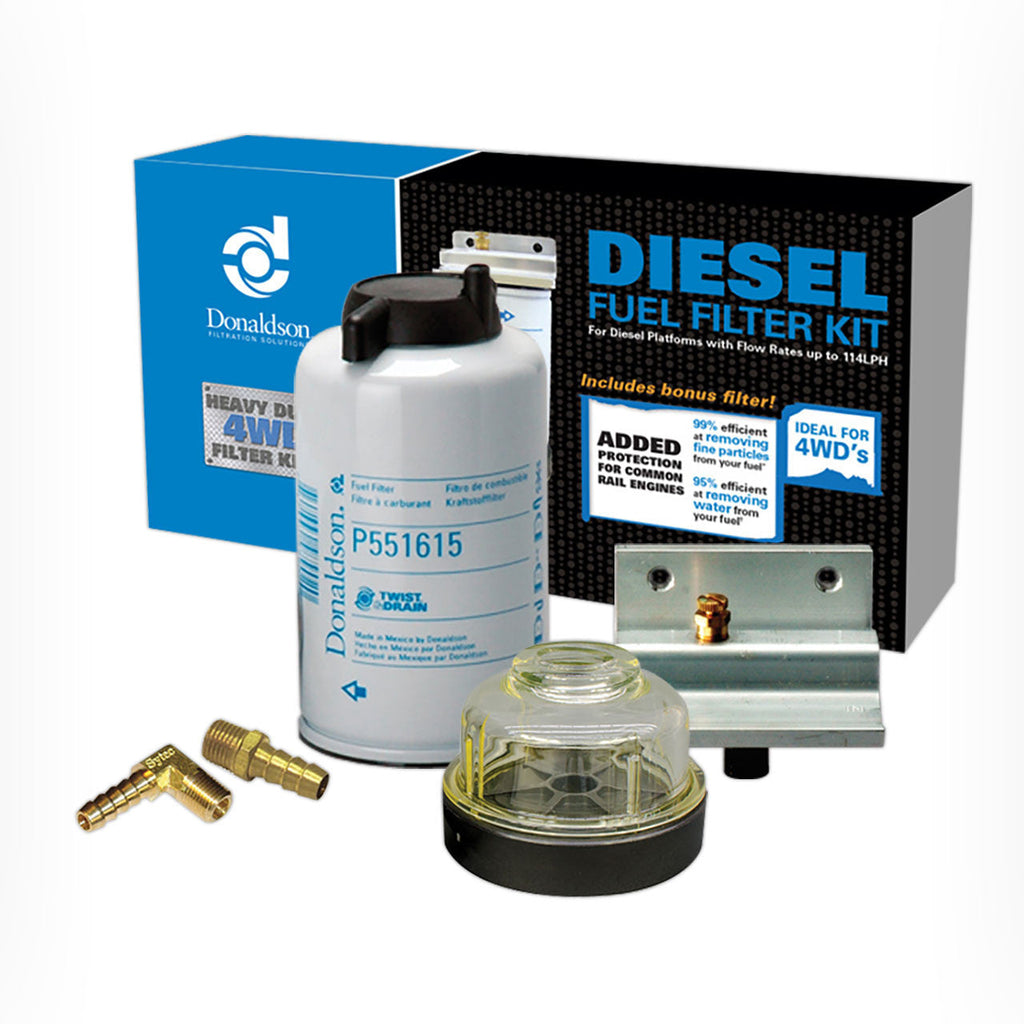

Donaldson 4wd Filter Kit P903316
High Efficiency 3 Micron 3/8" Diesel Fuel Kit
For Diesel Platforms With Flow Rates Up To 114lph
Contaminated Fuel Can Lead To Vehicle Downtime And Costly Repairs, Especially To Expensive Common Rail Systems And Components. Modern Engines Are Increasingly Requiring Better Fuel Filtration Technology To Ensure Delivery Of The Cleanest Fuel To Your Vehicle's Fuel System. Donaldson's High Efficiency Diesel Fuel Filtration Kit Provides Additional Protection For Your Vehicle, Providing Cleaner Fuel; Keeping You Up And Running And Out Of The Workshop.
Ideal For Many 4wd Applications:
:: Includes Additional Filter Element
(Keep One In The Vehicle As A Spare!)
:: Supports Fuel Flow Upto 30gph / 114lph
:: Water Separating Filter ; Drain Bowl
:: Max.Working Pressure: 100psi / 690kpa / 6.8 Bar
Kit P903316 Includes:
1x Head Assembly, Fuel (P560382)
2x Fuel Filter, Water Separator Spin-On
Twist ; Drain (P551615)
1x Bowl - Twist ; Drain (P569758)
1x Threaded Npt Adapter (P506054)
2x Threaded Npt Adapter (P506053)
Part Specifications:
P560382 Head Assembly, Fuel:
Length: 83mm / 3.27"
Width: 83mm / 3.27"
Height: 62mm / 2.44"
Inlet Size: 1/4 Npt
Outlet Size: 1/4 Npt
Filter-To-Head Thread: M16 X 1.5
P551615 Water Separator Spin-On:
O.D: 77mm / 3.03"
Thread Size: M16 X 1.5
Length: 148mm / 5.83"
Gasket Od: 70mm / 2.76"
Gasket Id: 61mm / 2.40"
Efficiency 99%: 3 Micron
Efficiency Test Std: Sae J1985
Emulsified H2o Efficiency: 95 Percent
Media Type: Cellulose
P569758 Bowl - Twist ; Drain:
P506053 Threaded Adaptor:
Outer Diameter: 10mm / 0.39"
Thread Size: 1/4 Npt
P506054 Threaded Adaptor:
Outer Diameter: 10mm / 0.39"
Thread Size: 1/4 Npt
Download Pdf For More Info ≫
