Description

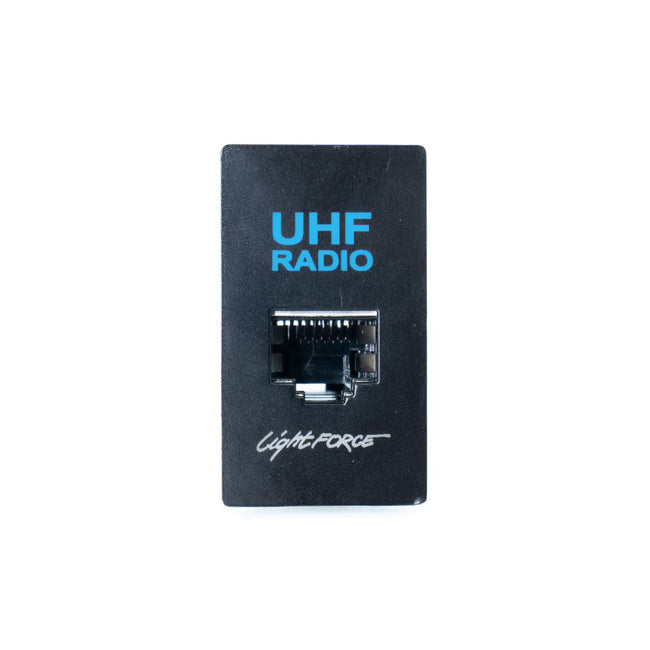

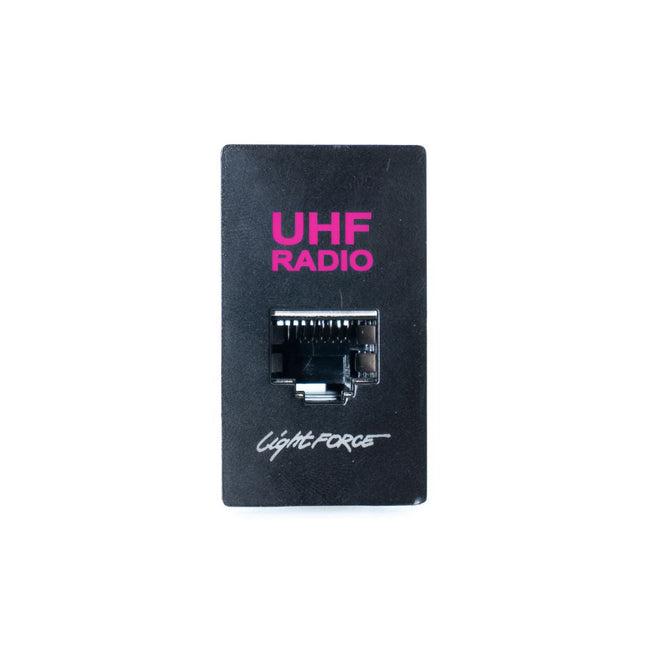

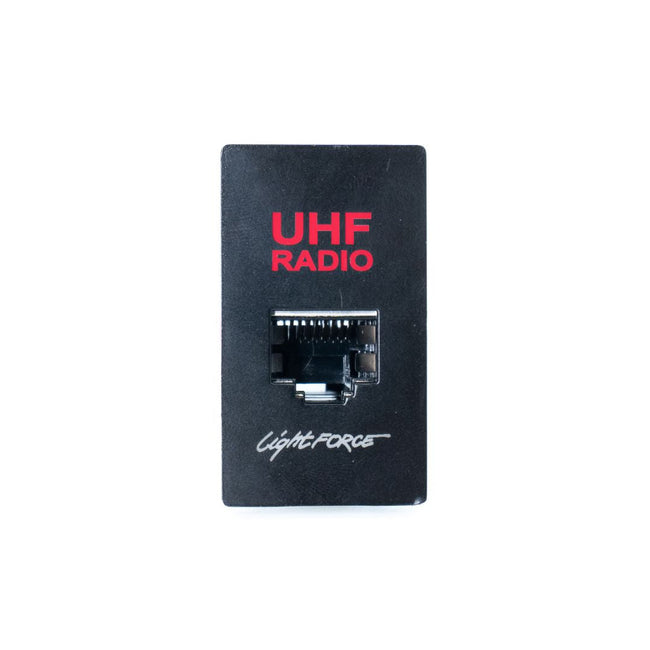

This Rj45 Passthrough Connector Allows For A Remote Microphone Fitted With An Rj45 Connector To Be Integrated Directly Into An Oem Switch Blank Location On The Ac Panel Of A 70-79 Series Vehicle And Any In-Switch Location For 80 Series Vehicles (That Are Compatible With Lightforce Cbswty3 Switches).
The Uhf Head Unit Can Then Be Remotely Mounted With The Convenience Of Just Connecting The Mic Into The Rj45 Passthrough Connector.
Compatible With Face-Lift Of Current 2024 Landcruiser 70 (76, 78, ; 79) Series.
This Lightforce Rj45 Passthrough Connector Is Moulded From A Blend Of Abs Plastic And Polycarbonate To Ensure Longevity. Its Compact Designed Will Integrate With The Vehicles Existing Factory Switches.
- Led Backlit Illumination (White, Blue, Red, Cyan, Magenta, Yellow And Green)
- Metal Shielding Around The Rj45 Receptacle To Minimise Rf Interference Of The Connected Cables
- Cat.6 Compliant
- Dual Internal Lateral Supports To Ensure The Uhf Plug Is Fully Retained In Place
Fitment Location
Dimensions
- Face Plate Size: 24.3mm W X 42.64mm H
- Cut Out Size: 19.2mm W X 38.2mm H
Installation
Connect The Red Wire To The Existing 12v Dash Light Circuit And The Black Wire To The Negative.
Vehicle Compatibility
| Make | Model | Compatible From | Compatible To |
|---|---|---|---|
| Toyota | Landcruiser 70 Series (Facelift) | 2024 | Current |
| Toyota | Landcruiser 70 Series | 2009 | 2023 |
| Toyota | Landcruiser 70 Series | 1984 | 2009 |
| Toyota | Landcruiser 80 Series | 1990 | 1997 |
| Toyota | Hilux | 1993 | 1997 |
