Description
Switch Connector Sold As A Replacement Part For Ford/Mazda Suitable Switches Sold By Lightforce.

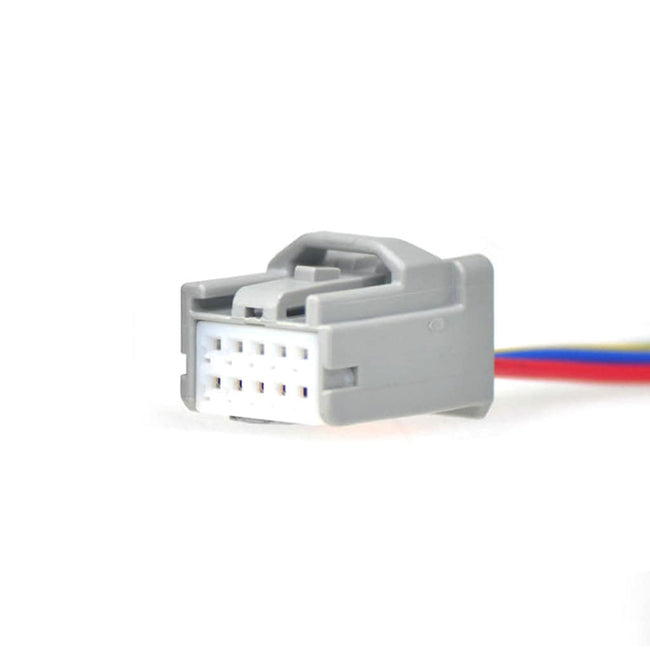

Switch Connector Only (100mm In Length) Suitable For Use With The Ford Ranger Px1 And Second-Generation Mazda Bt50 October 2011 Onwards Oem Driving Light Switch.
Wiring Instructions:
Red Wire - Illuminates The Blue Indicator On The Switch (When In The On Position) For This To Function Connect With The Yellow Wire
Blue Wire - 12v In From High Beam Circuit
Yellow Wire - 12v Switched Out, Connect With The Red Wire, Then Connect To Relay {87}
Black Wire - Connect To Earth Circuit (Negative)
Green Wire - From 12v Dash Light Circuit (Illuminates Roo Logo Or Image)
Vehicle Compatibility
| Make | Model | Compatible From | Compatible To |
|---|---|---|---|
| Ford | Ranger Px | 2011 | 2015 |
| Mazda | Bt50 | 2011 | 2017 |
