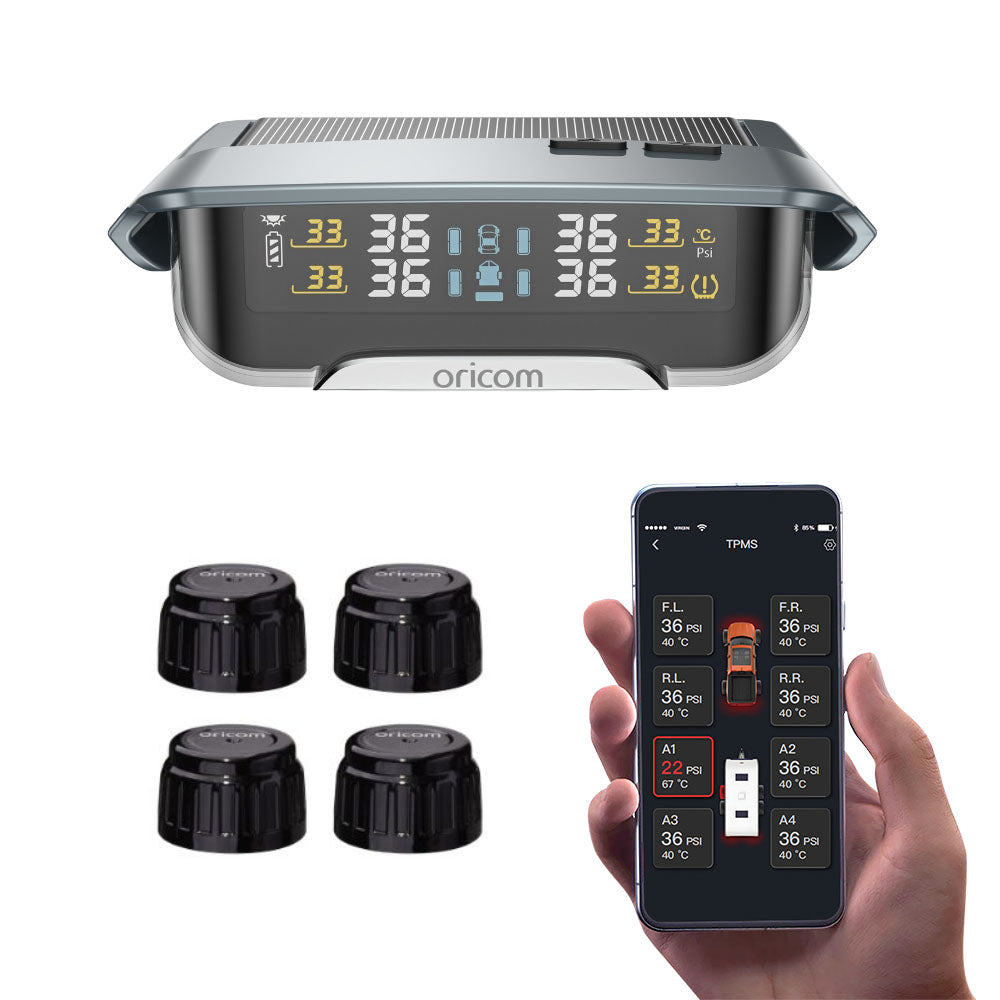

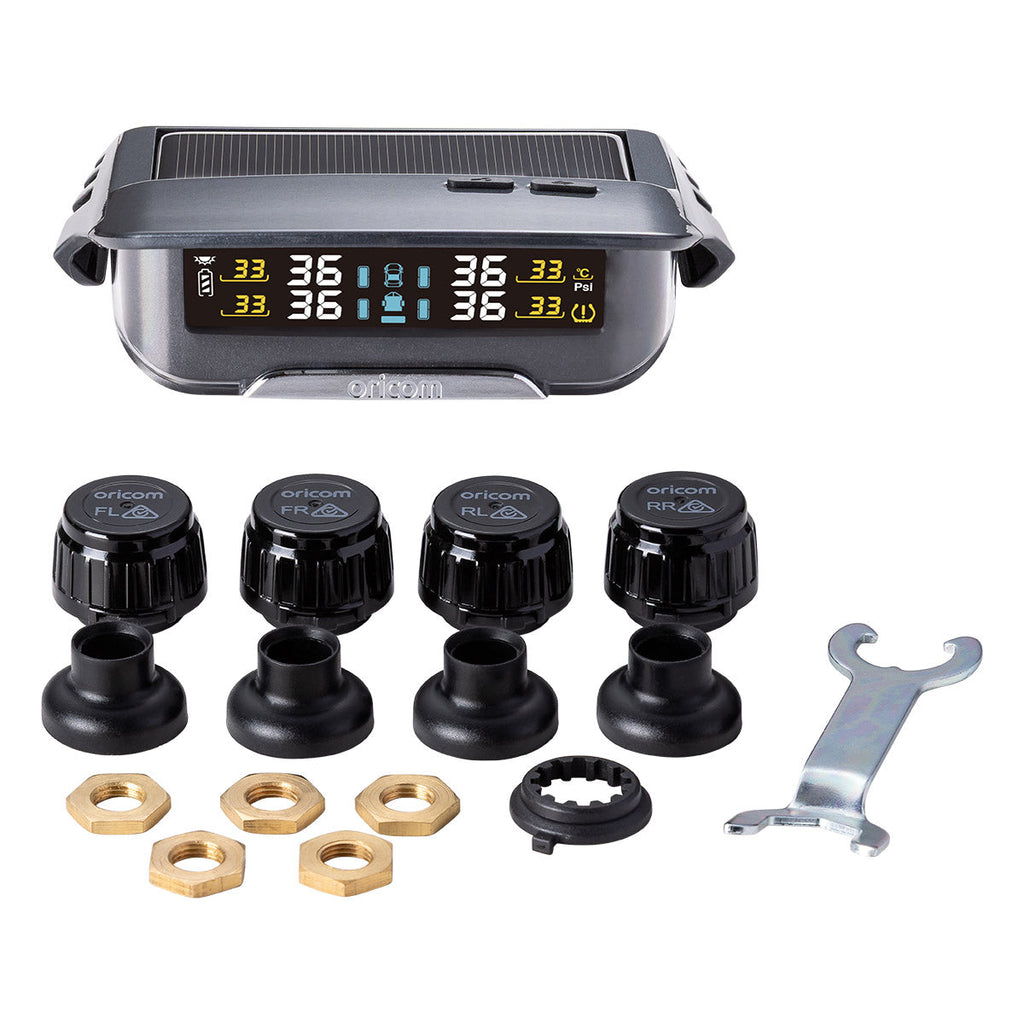

Keep your tyres safe and your journeys worry-free with this advanced Tyre Pressure Monitoring System, which supports up to 10 external sensors and is available in 4, 6, or 8-sensor packs.

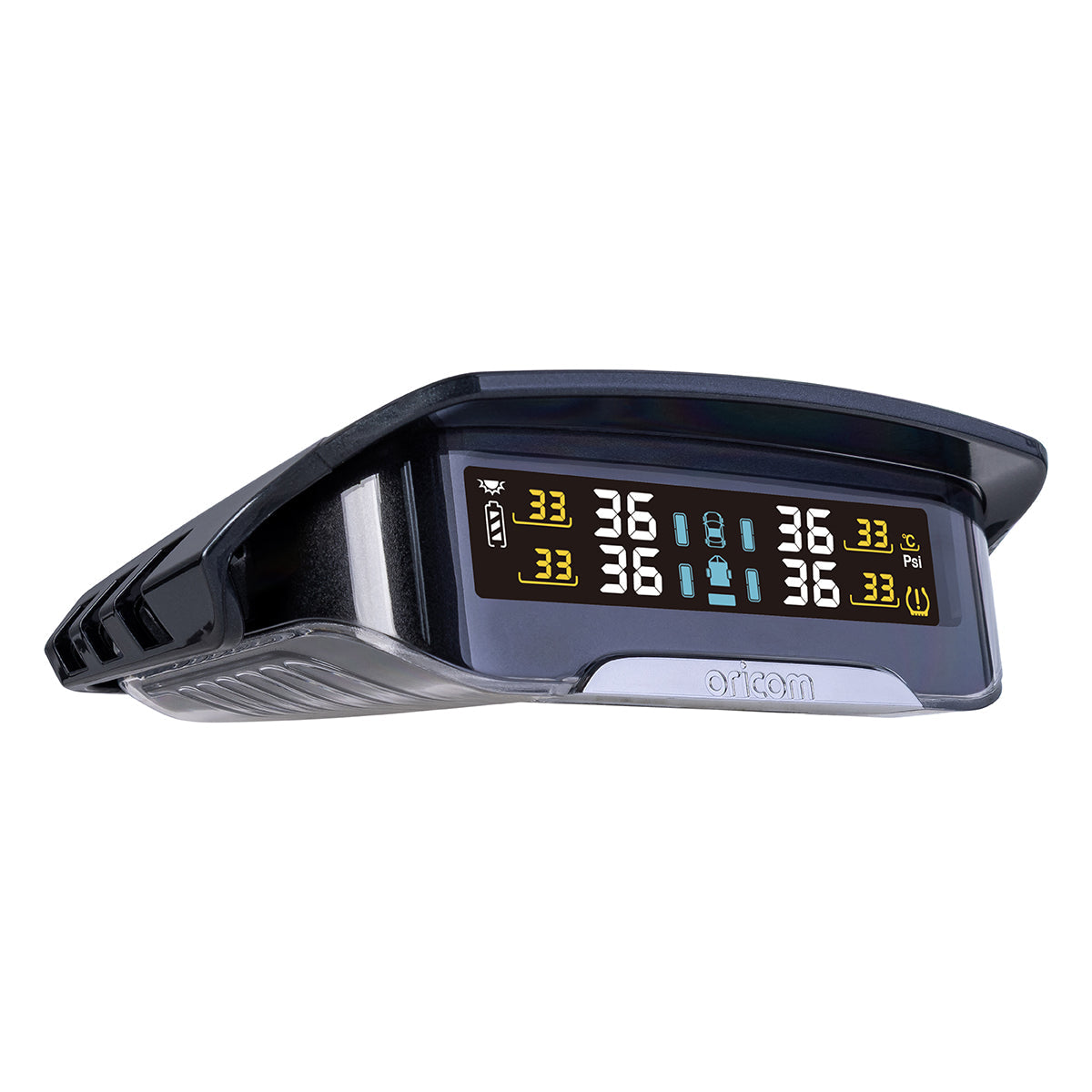

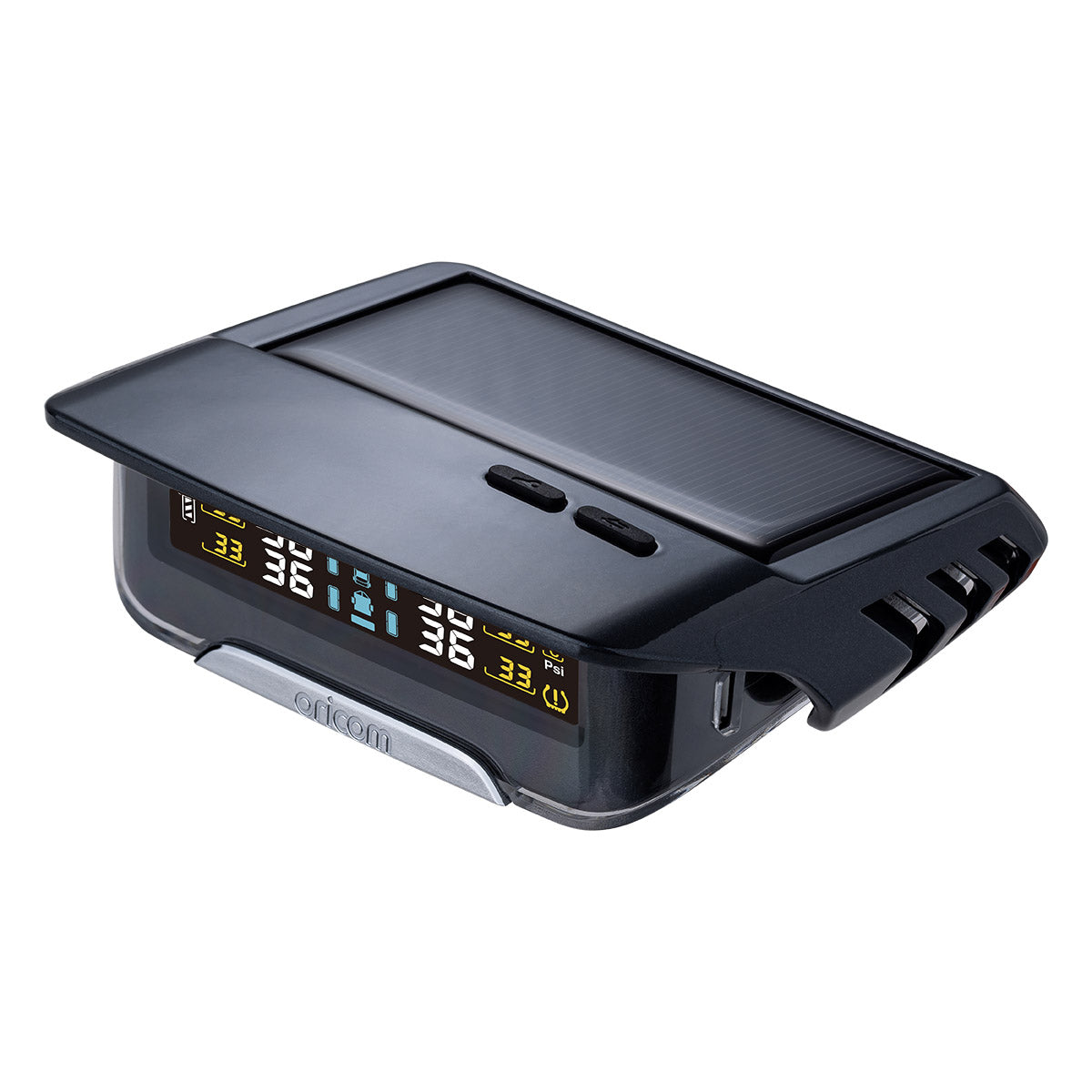

The compact, solar-powered LCD display provides real-time pressure and temperature data, easily set up via a free app, and allows you to switch between Normal and Offroad driving modes to maintain optimal tyre performance.
With wireless sensor transmission, adjustable threshold alerts, auto-brightness, visual and audio alarms, high and low pressure warnings, sensor failure notifications, intelligent power-saving mode, and an optional micro USB input, this system delivers comprehensive tyre monitoring for enhanced safety. Long-lasting display battery life and a 12-month warranty complete a package designed to give you confidence on every road and terrain.
Note: This unit is not compatible with Apple CarPlay and Android Auto.
Key Features:
• Compatible with up to 10 tyre sensors
• Easy setup with the free app
• Switch between Offroad and Normal modes to
save tyre pressure settings
• Compact solar powered display unit
• Long lasting display unit battery life
• Wireless transmission between sensor
and display unit
• Adjustable threshold value
• Auto brightness on display
• Monitors pressure and temperature
• Visual and audio alarm
• Optional micro USB input
• Intelligent sleeping mode for power saving
• High/ low pressure warning
• Sensor failure warning
• 12 Month warranty
Technical Specifications:
Sensor:
Operating frequency: 433.92MHz ± 0.05MHz
Operating voltage: 2.3 ~ 3.3V
Operating current: ≤1 2mA
Static current: ≤0.5uA
Operating temperature: -20˚C ~ +80˚C
Storage temperature: -40˚C ~ +80˚C
Battery model: CR1632
Display:
Operating frequency: 433.92MHz ±0.05MHz, 2.4GHz BLE
Operating current: ≤32mA
Static current: ≤45μA
Operating voltage: 2.6 ~ 3.6V
Operating temperature: -20˚C ~ +70˚C
Storage temperature: -40˚C ~ +95˚C
Built-in battery capacity: 500mAh
Charging temperature: -10˚C ~ 65˚C
Solar charging current: ≥15mA (at 5500LX 25˚C)
USB Charging current: ≤70mA
