Description

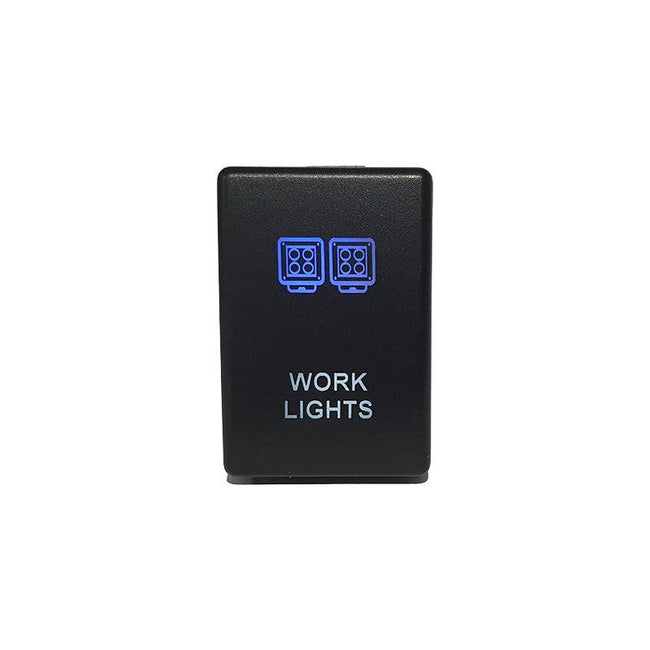

The text illuminates white via the dash light circuit. Once the switch is pushed on, the upper icon window illuminates blue.
This factory-style work lights switch is designed specifically to fit 3rd Generation vehicles only and will fit into the original dashboard, (right-hand side of the steering wheel) without any modification.
Specifications include:
- Switch cut out size is 20mm x 31mm
- Housing material black PVC
- Single switch input
- Dual LED illumination
- Suitable for positive switched vehicles only
- Harness included (300mm in length)
- Current rating 3 amps @ 12v (must be used in conjunction with a relay)
Harness compatibility:
Compatible with Lightforce Single Switch 8 Pin Adaptor # SWADP4. This enables direct connection to Lightforce Harness part number STRIKERLEDHARN (Striker LED Harness).
Switch connectivity:
Vehicle Compatibility
| Make | Model | Compatible From | Compatible To | Fitment Location |
|---|---|---|---|---|
| Isuzu | D-max | 2013 | 2020 | either side of the steering wheel on upper dash |
| Isuzu | D-max | 2020 | 2024 | |
| Isuzu | Mux | 2021 | 2024 | |
| Mazda | BT50 | 2020 | 2023 | |
| Holden | Colorado | 2012 | 2016 | either side of the steering wheel on upper dash |
