Donaldson Filter Kit X902721 suits:
Toyota Hilux (09/00-2005) 3.0L 5LE
Diesel LN147 S2 LN167 S2 LN172 S2
Cross Reference: K-11060
Modern diesel engines require clean, dry fuel for optimum combustion, maximum power and the lowest emissions level. Dirt and water are enemies of High Pressure Common Rail fuel systems and can dramatically reduce the service life of fuel components. Donaldson offers a comprehensive range of service kits which include the necessary filters to make servicing easy. Their Heavy-Duty filter kits have been designed specially to protect your investment in the harshest environments.

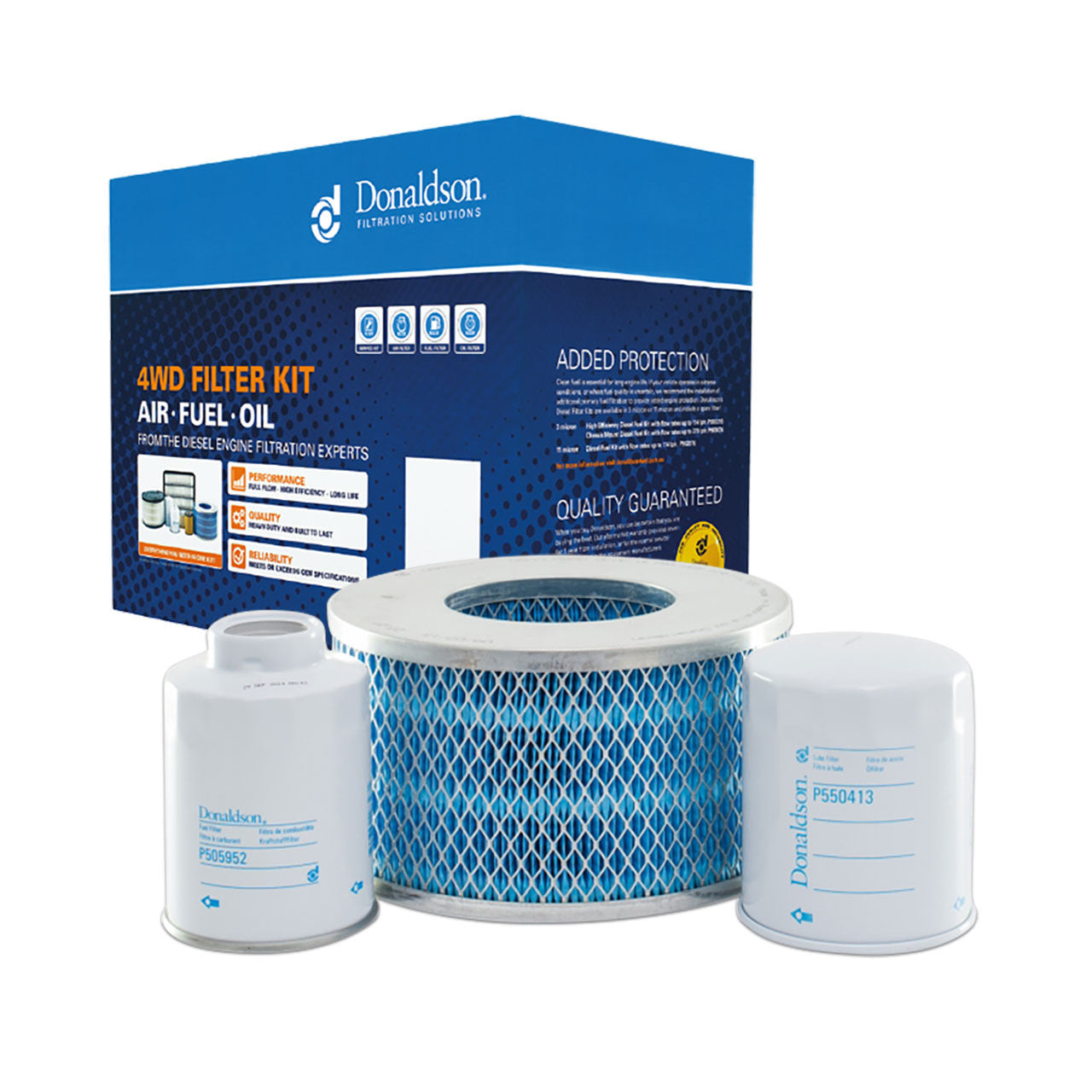

Kit X902721 includes:
P901934 - Air Filter
Cross Reference: 17801-54160, 17801-54180, 17801-67070
Outer Diameter: 218 mm (8.58 inch)
Inner Diameter: 109 mm (4.29 inch)
Length: 195 mm (7.68 inch)
Overall Length: 198 mm (7.80 inch)
Bolt Hole Diameter: 17 mm (0.67 inch)
Efficiency: 99.90
Efficiency Test Std: JIS D 1611
Type: Primary
Style: Round
Media Type: Cellulose
P550413 - Oil Filter Full Flow Spin-On
Cross Reference: 90915-03006, 90915-30002
Outer Diameter: 100 mm (3.94 inch)
Thread Size: M24 x 1.5
Length: 120 mm (4.72 inch)
Gasket OD: 80 mm (3.15 inch)
Gasket ID: 67 mm (2.64 inch)
Efficiency 95%: 4 micron
Efficiency 99%: 50 micron
Efficiency Test Std: JIS D 1611
Anti-Drainback Valve: Yes
Bypass Valve: Yes
Bypass Valve Setting LR: 1.7 bar (25 psi)
Bypass Valve Setting HR: 2.1 bar (30 psi)
Media Type: Cellulose
Collapse Burst: 6 bar (87 psi)
Type: Combination
Style: Spin-On
Primary Application: TOYOTA 9091503006
P505952 - Fuel Filter Water Separator Spin On
Cross Reference: 23390-64484 | 23390-30150
Outer Diameter: 93 mm (3.66 inch)
Thread Size: 3/4-16
Length: 129 mm (5.08 inch)
Gasket OD: 65 mm (2.56 inch)
Gasket ID: 57 mm (2.24 inch)
Outlet Size: M36 x 1.5
Efficiency 95%: 9 micron
Efficiency Test Std: JIS D 1611
Emulsified H2O Efficiency: 95 Percent
Collapse Burst: 6.9 bar (100 psi)
Type: Water Separator
Style: Spin-On
Media Type: Cellulose
Primary Application: TOYOTA 2339064480
Western Filters only sells filters of the highest quality and only include reputable brands - the industry's best including; Baldwin, Briggs and Stratton, Donaldson, Fleetguard, Fuel Manager, K&N, Mann, Parker Racor, Sakura, Wesfil Cooper.
**Please note: Kit photo is a representation only and may not match actual items. If you are unsure that this is the correct kit for your vehicle, please contact us for confirmation. We'll get back to you ASAP, usually within 24hrs on business days.
